Rear suspension blades For Iveco Daily

🔩 35C rear blades for Iveco Daily: Essential component for high-performance rear suspension

🔍 Product overview

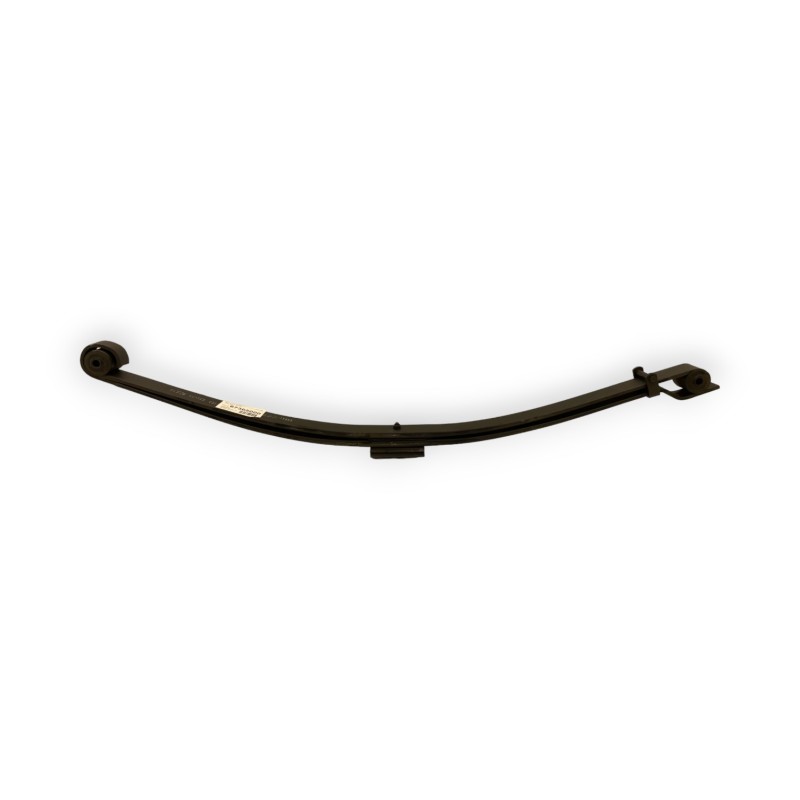

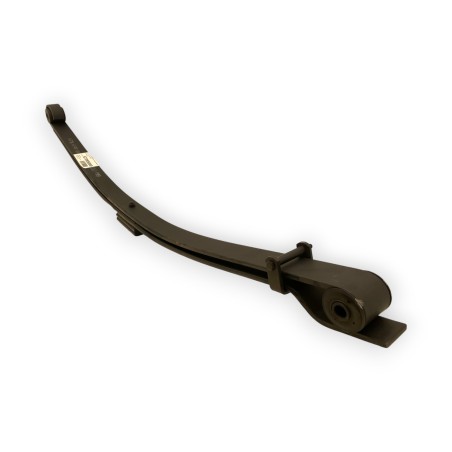

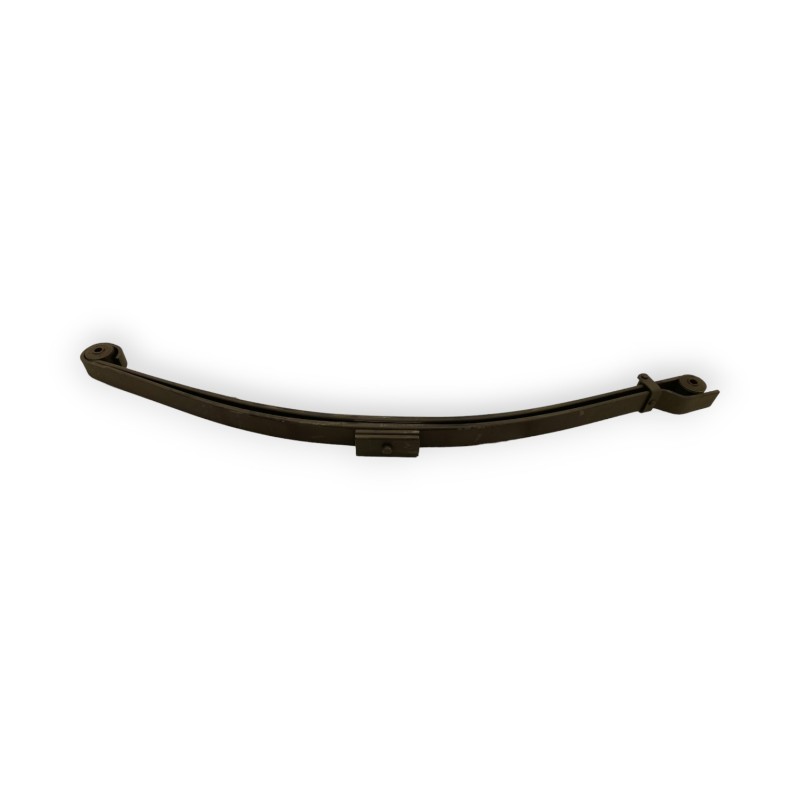

35C rear leaf springs are an essential suspension component for Iveco Daily commercial vehicles equipped with dual wheels. This part plays a fundamental role in the stability, payload, and road handling of the vehicle, particularly in intensive use, such as heavy deliveries, repeated professional trips, or the transport of goods.

Designed for strength and durability, these blades fit perfectly into the rear suspension architecture and comply with the manufacturer's standards for the Iveco Daily Euro 6 range from 2014 to 2021.

⚙️ Technical specifications

• Type: Reinforced rear suspension leaf springs, type 2+1

  • 2 main leaf springs ensure rigidity and maintain the vehicle's height

  • 1 auxiliary leaf improves load capacity by reducing sag

• Width: 60 mm — standard for 35C models

• Thickness: 66 mm — provides strength and flexibility

• Length: between 700 mm and 715 mm depending on positioning and mounting

• Kit of reinforcement? : There is no kit for reinforcement for this type of mounting, but the blades can be replaced (contact us)

• Mounting: rear suspension, suitable for twin wheel configurations

These specifications ensure perfect compatibility with Iveco 35C range vehicles, while maintaining excellent driving comfort and proven durability.

🛠️ Function and purpose of suspension blades

Suspension blades are responsible for absorbing loads and shocks associated with driving on uneven roads or when carrying heavy loads. They act as mechanical ressort, bracketing the weight of the vehicle and maintaining constant ground clearance.

The 2+1 leaf spring system has the advantage of intelligently distributing mechanical stress:

• The first two blades ensure firm grip and stable support for the chassis on the axle.

• The secondary leaf spring comes into play in the event of overload or sudden stress, thus limiting the risk of breakage or excessive deformation.

In the event of deformation, corrosion, or partial breakage, a suspension leaf spring must be replaced to avoid rear axle imbalance, premature tire wear, or reduced driving comfort.

📌 Position on the vehicle and mounting environment

The 35C rear blades are mounted horizontally, under the chassis, between the rear axle and the vehicle's frame. They are:

• Secured using SCREW and specific hex nuts

• Held in place with RUBBER BUSHINGs that absorb vibrations

• Combined with suspension stops that limit excessive movement

The installation environment requires partial disassembly of the rear suspension, as well as safe lifting of the vehicle.

🧰 Recommended accessories

For a complete and reliable replacement, it is recommended to also replace:

• Rear blade silent blocks: to ensure a flexible and durable connection

• Hexagon screws and hexagon nuts: essential fasteners for securing the assembly

• Suspension stops: guarantee limited movement and prevent metal jolts

Replacing them in sets ensures mechanical consistency and extends the overall service life of the suspension.

🧽 Maintenance and preventive inspection

Even though suspension blades are designed to last, minimal maintenance is strongly recommended:

• Regular inspection every 20,000 km: detection of cracks, corrosion, or sagging

• Regular cleaning to prevent the accumulation of dirt that promotes rust

• Replacement in case of unusual noises, change in vehicle attitude, or abnormal wear on rear tires

🚚 Who is this product intended for?

This product is particularly recommended for:

• Transport and logistics professionals

• Craftsmen and tradespeople who use the Iveco Daily as a work vehicle

• Garages and workshops specializing in heavy commercial vehicle maintenance
