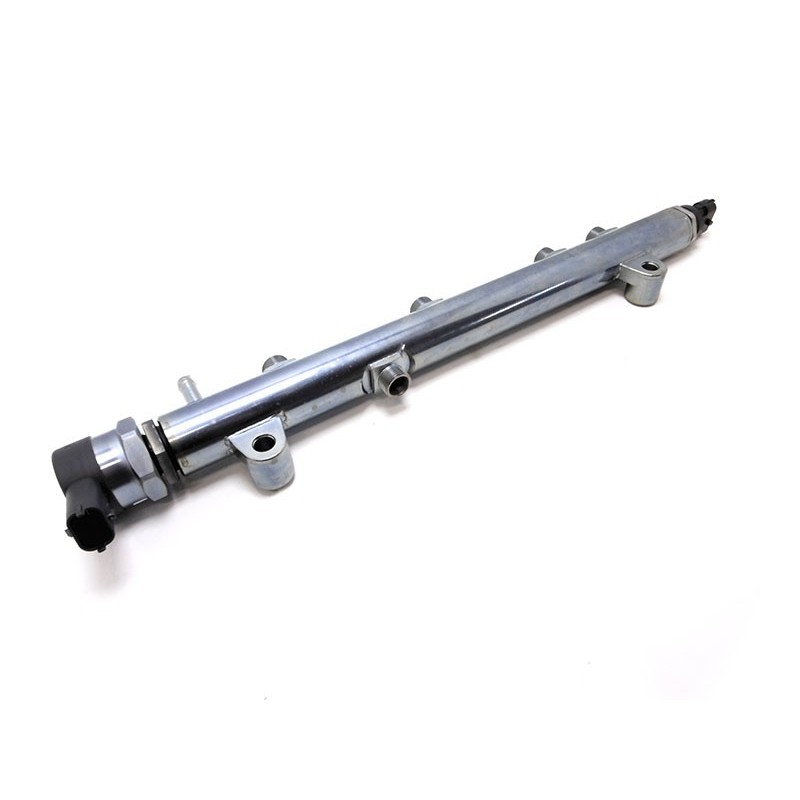

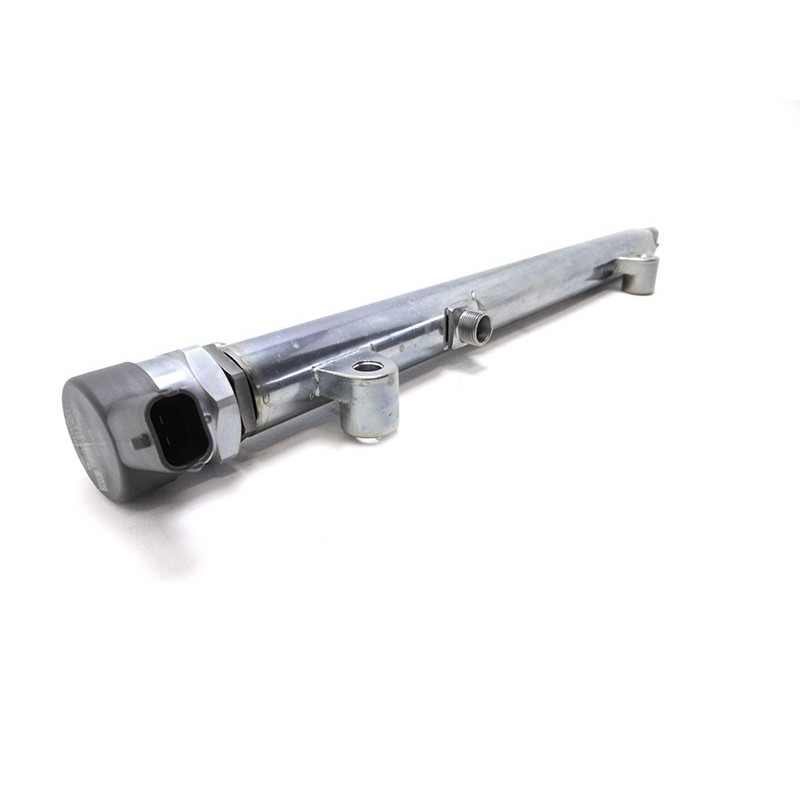

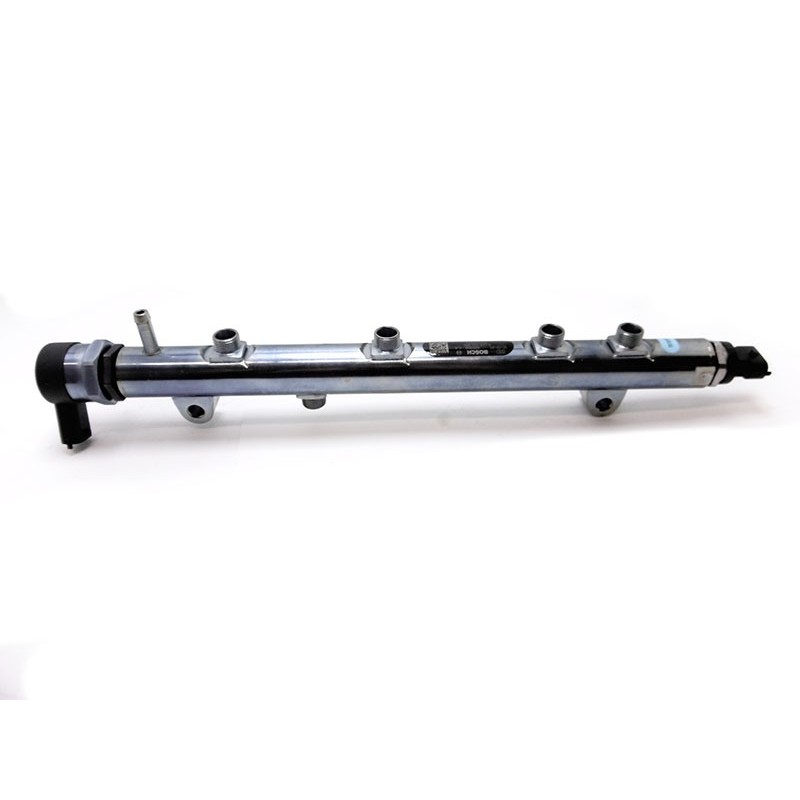

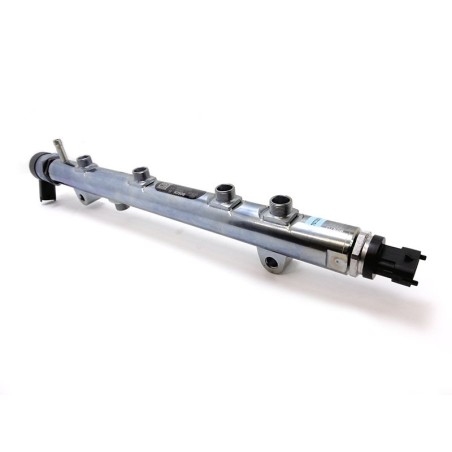

3.0L Injection Ramp for Iveco Daily
Product Description
The 3.0L injection rail offered by RAXOR Parts (reference corresponding to the original Iveco code IVE504342424) is an essential component of the Common Rail injection system for 3.0L Euro 5/Euro 6 engines on Iveco Daily vehicles.
This module comes with two pressure sensors, making it easy to replace completely without having to search for these ACCESSORIES separately.
Function & Role
-
It stores the high-pressure fuel supplied by the pump until each injector needs to draw it in.
-
It ensures even distribution of fuel to all injectors, optimizing combustion, fuel consumption, and emissions.
-
Integrated pressure sensors monitor rail pressure in real time to adjust injection according to engine load.
Compatibility & Target Models
-
Vehicles concerned: Iveco Daily Euro 5 (2012-2013) and Euro 6 (2014-2016)
-
Engine: 3.0 L with chain drive
-
Always check compatibility with the VIN number or original references before purchasing
Important Points & Accessories
-
The rail already includes its pressure sensors—no need to add them separately.
-
Recommended accessories for a complete replacement:
-
3.0L HPI injection pump
-
Replacement fuel pressure sensor
-
High-pressure line kit
-
-
RAXOR indicates that all CONTROLs are checked for compatibility before shipping.
Installation & Best Practices
-
Replace the entire set of high-pressure lines and GASKETs during installation
-
Ensure that the fuel system is completely clean (free of metal filings or impurities).
-
Install the sensors in the same locations as the old rail
-
Tighten to the torque settings recommended by Iveco
-
After installation, test under pressure and check for leaks
✅ Why choose this rail from RAXOR Parts?
-
Supplied ready to install, with sensors included
-
Compatible with 3.0L Euro 5 / Euro 6 versions
-
Fast shipping and compatibility check
-
More reliable option than CONTROL sensors or ACCESSORIES separately
