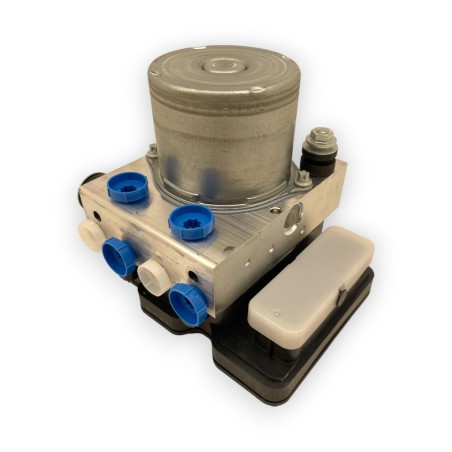

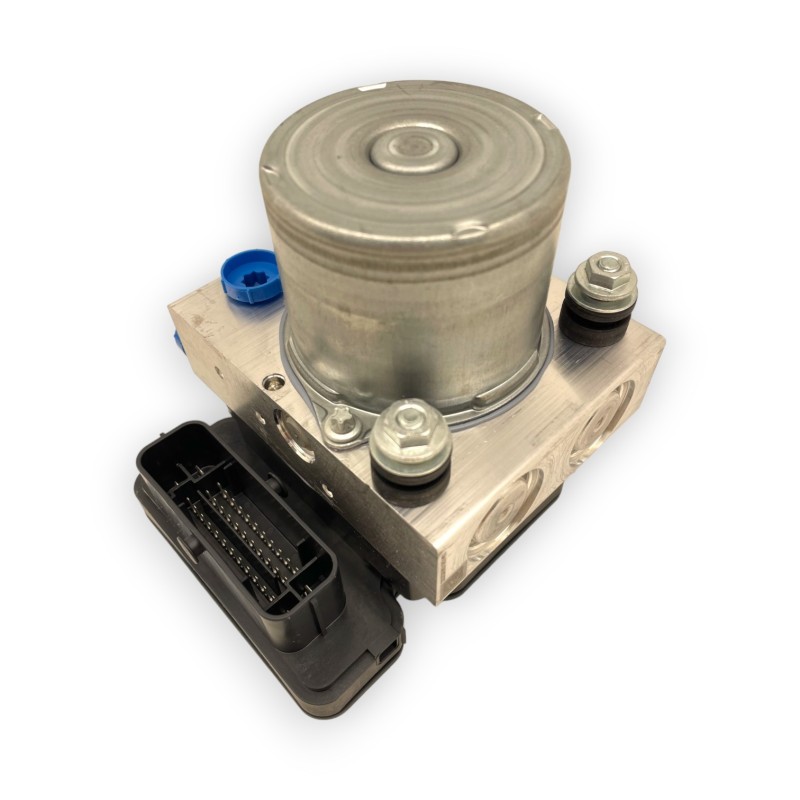

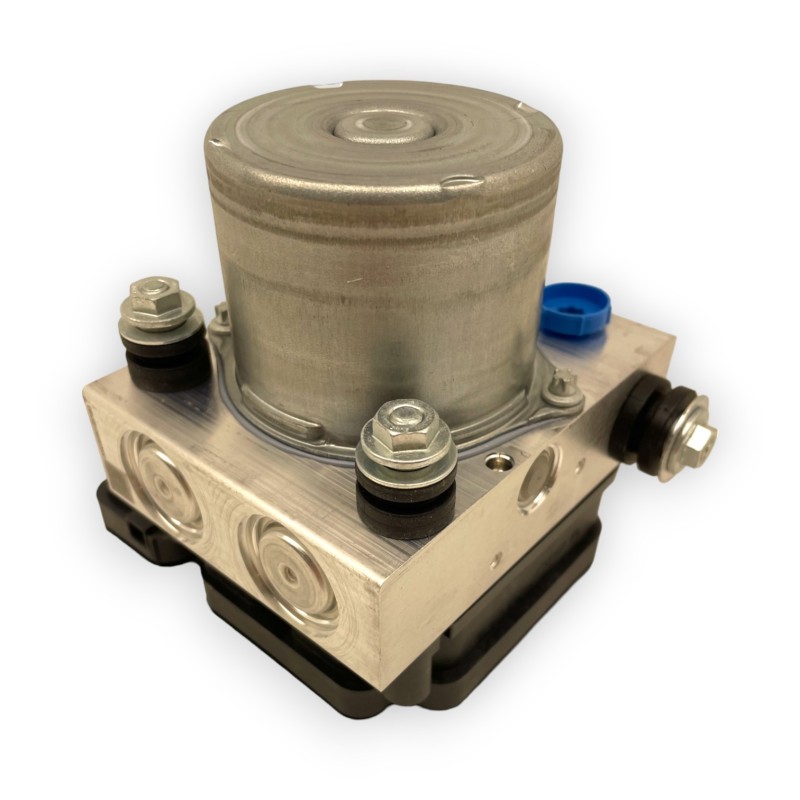

⚙️ ABS Control Unit Iveco Daily 35C 50C – Reliable anti-lock braking, even when loaded and on slippery surfaces
🔧 What is this part for?
The ABS control unit is the anti-lock distributor of the hydraulic braking circuit. It combines an electronic controller and a hydraulic block equipped with solenoid valves and a return pump. Based on information transmitted by wheel speed sensors, the controller detects a wheel about to lock and modulates braking pressure on that wheel several times per second. The vehicle thus maintains its ability to steer during emergency braking, even when loaded or on slippery road surfaces. In case of failure, the anti-lock function is deactivated and braking, although still ensured, loses this level of safety.
This ABS control unit corresponds to Iveco reference 5801894426. It is intended for Iveco Daily 35C and 50C from model year 2016 onwards and is installed at the location of the original control unit, on the existing pipes and connector.
✅ Technical specifications
Compatibility: Iveco Daily 35C and 50C – MY2016, MY2019, MY2022, MY2024
Type: ABS control unit (controller and hydraulic unit with pump)
Position: Engine compartment, on the braking circuit between the master cylinder and the wheels
Function: Regulation of braking pressure wheel by wheel to prevent wheel lock
OEM Reference: 5801894426
✅ Why replace this part?
✅ A faulty ABS control unit deactivates anti-lock braking: during emergency braking, wheels can lock and the vehicle no longer responds to steering.
✅ Driving assistance functions that rely on the braking system may be deactivated at the same time as the ABS.
✅ A permanently lit ABS warning light is grounds for a failed technical inspection.
✅ Symptoms of wear / failure / replacement
An ABS control unit failure is generally indicated by the ABS warning light on the dashboard, often accompanied by a fault code recorded in the controller. You may also notice regulation being triggered incorrectly at low speed, abnormal pedal vibration, unusual pump noise, or complete absence of regulation on slippery surfaces. Before concluding a control unit failure, it is essential to read the fault codes with a diagnostic tool and check the wheel sensors, their targets, wiring and connectors, as well as battery voltage: these elements are frequently the source of the same warning light.
✅ Installation advice
Disconnect the battery before any work and carefully identify each pipe before removal. Immediately plug the openings of the control unit and pipes to prevent air and dirt from entering. After reassembly, the circuit must be bled according to the manufacturer's procedure, operating the control unit pump with a diagnostic tool to remove air from the hydraulic block. Depending on the vehicle configuration, control unit reprogramming may also be necessary. This work should be entrusted to a professional equipped with an appropriate diagnostic tool.
✅ Technical advice from RAXOR Parts
An ABS warning light does not always indicate the control unit: the majority of faults come from a wheel sensor, a dirty target, or damaged wiring. Always perform a complete diagnostic before ordering, and find the associated sensors and components in our ABS and braking management Iveco Daily section. When replacing, take advantage of the bleeding to renew the brake fluid and check the condition of brake hoses and lines Iveco Daily and brake calipers Iveco Daily. All brake hydraulic circuit components and our entire Iveco Daily braking range are available from RAXOR Parts.
✅ Why choose RAXOR Parts?
✅ ABS control unit reference 5801894426, for Iveco Daily 35C and 50C from 2016, as a direct replacement for the original control unit.
✅ ABS sensors, hoses, calipers and complementary hydraulic parts available for a complete overhaul of the braking circuit.
✅ Stock available and fast shipping to minimize vehicle downtime in active use.
