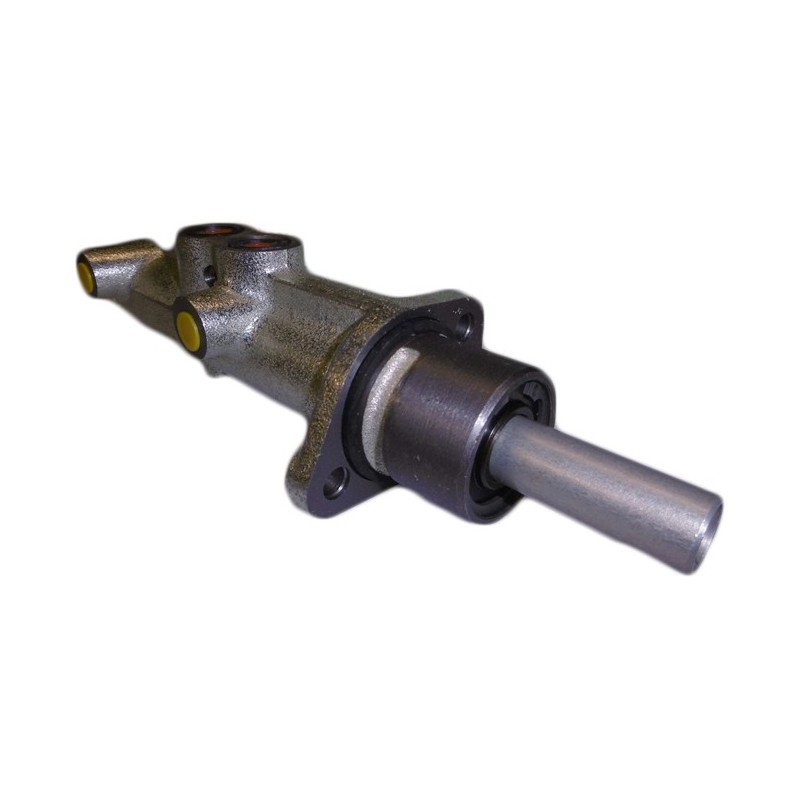

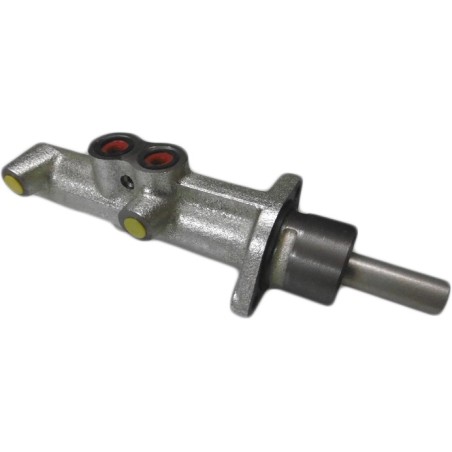

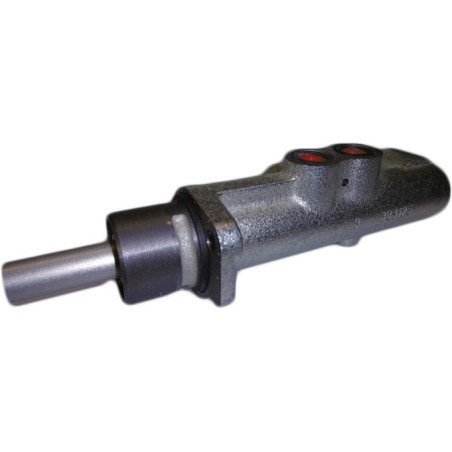

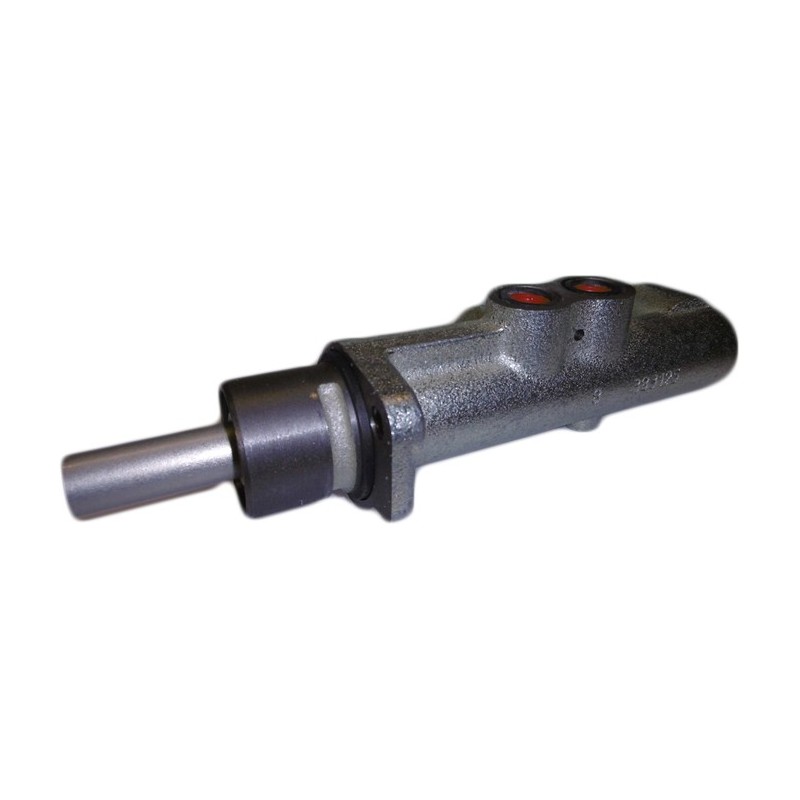

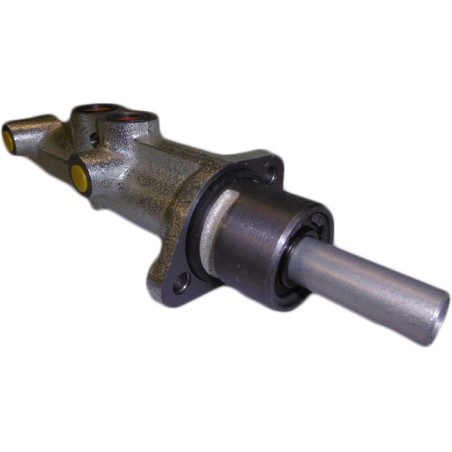

⚙️ Iveco Daily Brake Master Cylinder – Reliable Hydraulic Pressure for Safe Braking
🔧 What is this part used for?
The brake master cylinder is the central component of the hydraulic braking system. It converts the force applied to the brake pedal into hydraulic pressure, which is then transmitted to the calipers or wheel cylinders to activate the brakes. A faulty master cylinder directly compromises braking effectiveness and can result in a spongy pedal, increased stopping distance, or even a partial loss of braking ability.
This new part is made of cast iron for greater durability and features a 25.4 mm piston. It is an exact replacement for the original master cylinder on Iveco Daily models produced between 2000 and 2014, requiring no modifications to the existing hydraulic system.
✅ Technical Specifications
Compatibility: Iveco Daily (2000–2014)
Type: Hydraulic brake master cylinder
Material: Cast iron
Piston diameter: 25.4 mm
Condition: New
OEM Part Number: IVE2991743 / IVE42530542
✅ Why replace this part?
✅ A worn or leaking master cylinder reduces the hydraulic pressure transmitted to the brakes, dangerously increasing braking distance.
✅ An abnormally soft or hard brake pedal indicates a malfunction in the hydraulic system that requires immediate attention.
✅ Replacing it with a new, genuine part restores precise and safe braking response.
✅ Signs of wear / failure / replacement
Signs of a faulty master cylinder on an Iveco Daily include a brake pedal that depresses abnormally or becomes hard to press, increased braking distance, the vehicle skidding during braking, or grinding and squeaking noises coming from the brake system. A seized piston, swollen internal seals, or a leak at the reservoir bleed valve are the most common causes of these symptoms.
✅ Installation Tips
Replacing the master cylinder requires a complete bleeding of the brake system after installation to remove any air bubbles that could impair braking performance. Also check the condition of the brake fluid reservoir and associated hoses. Because this part plays a critical role in vehicle safety, installation and bleeding must be performed by a qualified professional.
✅ Technical advice from RAXOR Parts
When replacing the brake master cylinder, take the opportunity to check the condition of the associated brake booster, which is often subjected to the same stresses and is prone to similar wear. Find the full range of
