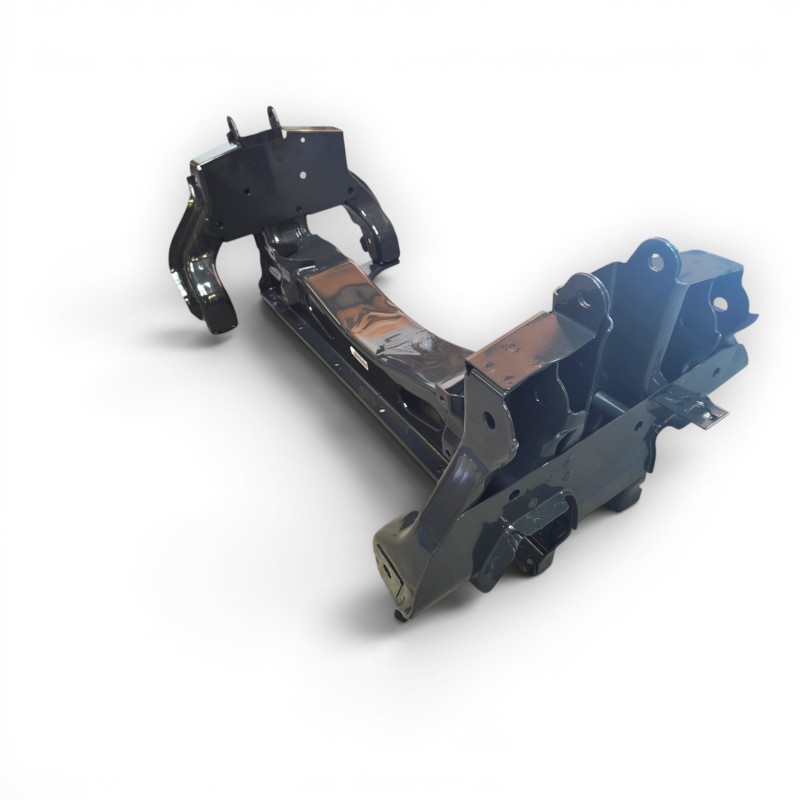

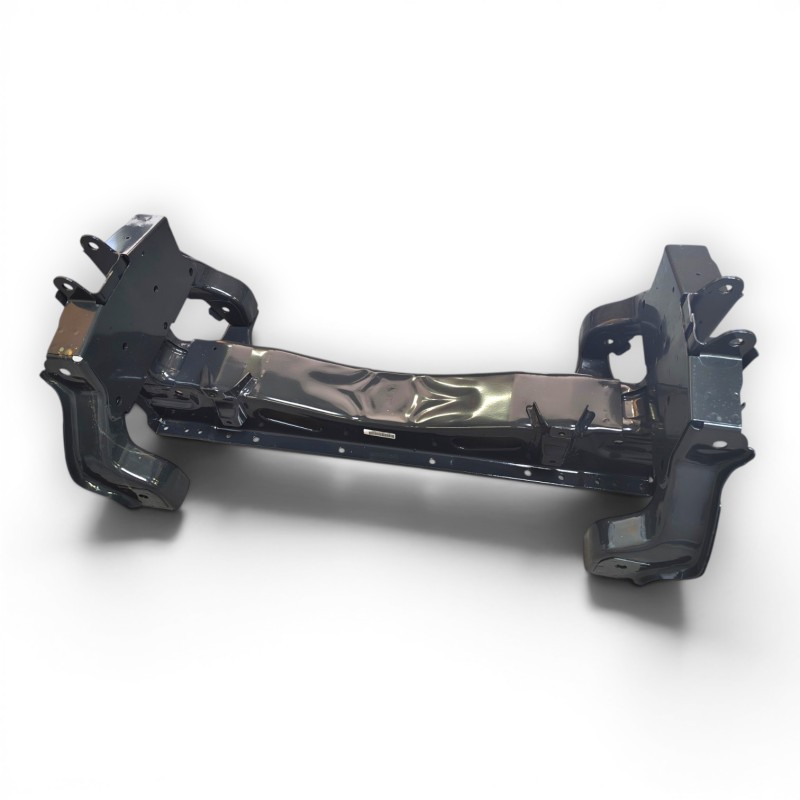

🔧 Front Cradle Iveco Daily 35S – Quad Leaf Suspension, Single Wheels, from 2014 Onwards

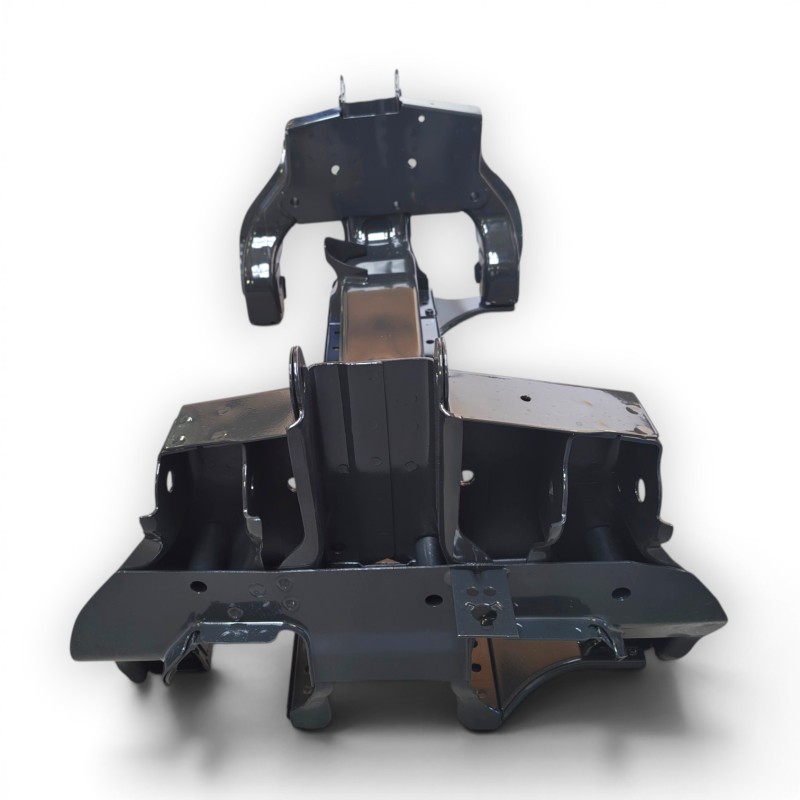

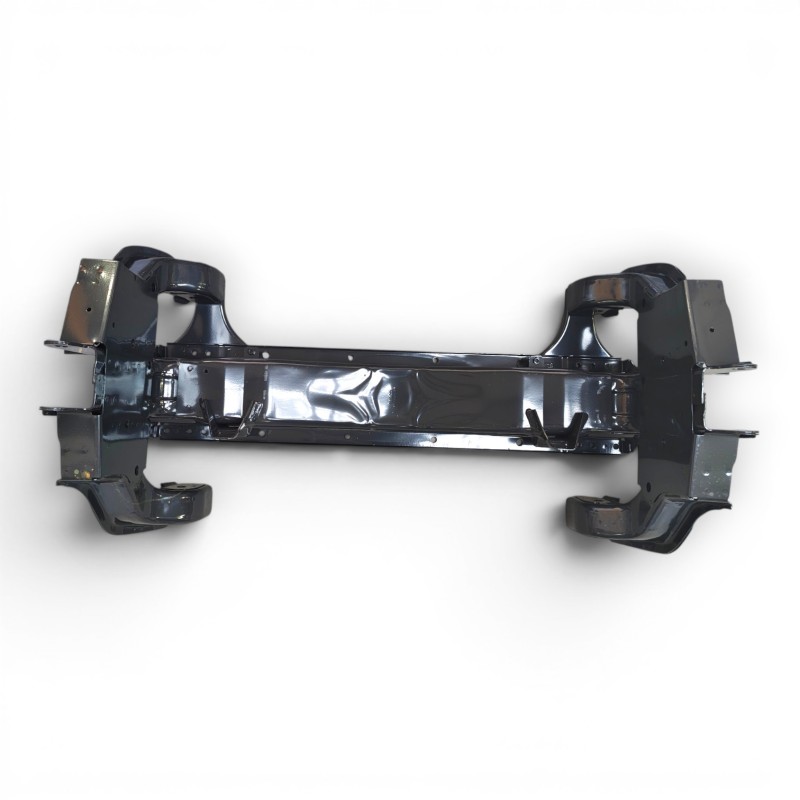

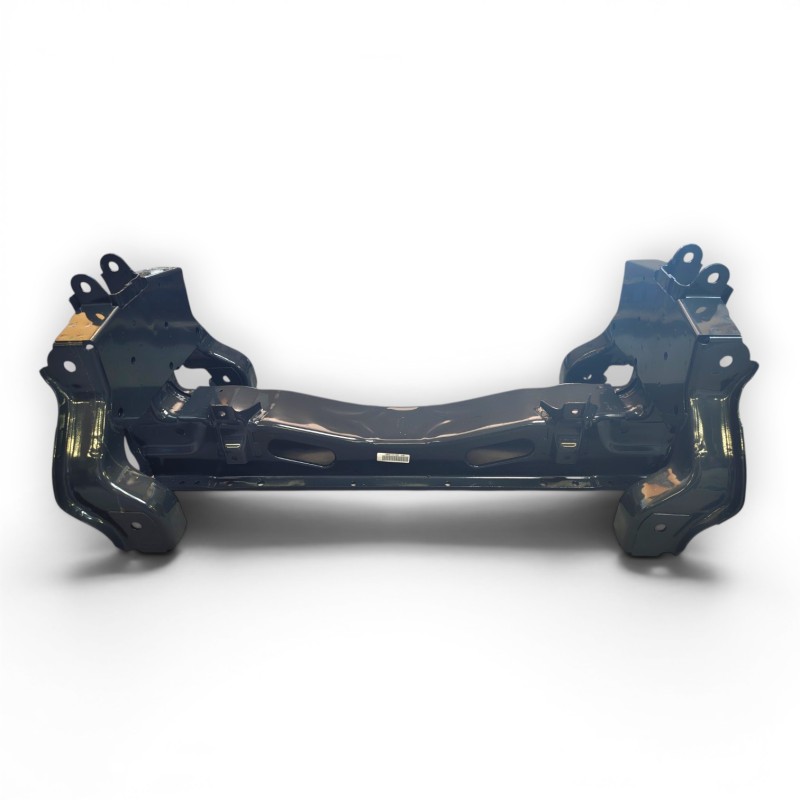

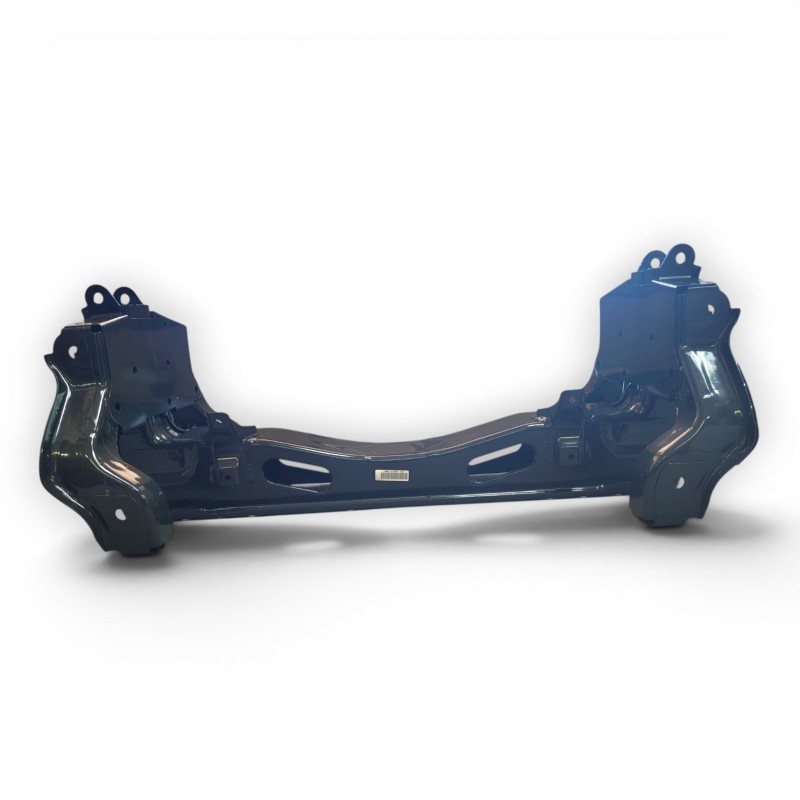

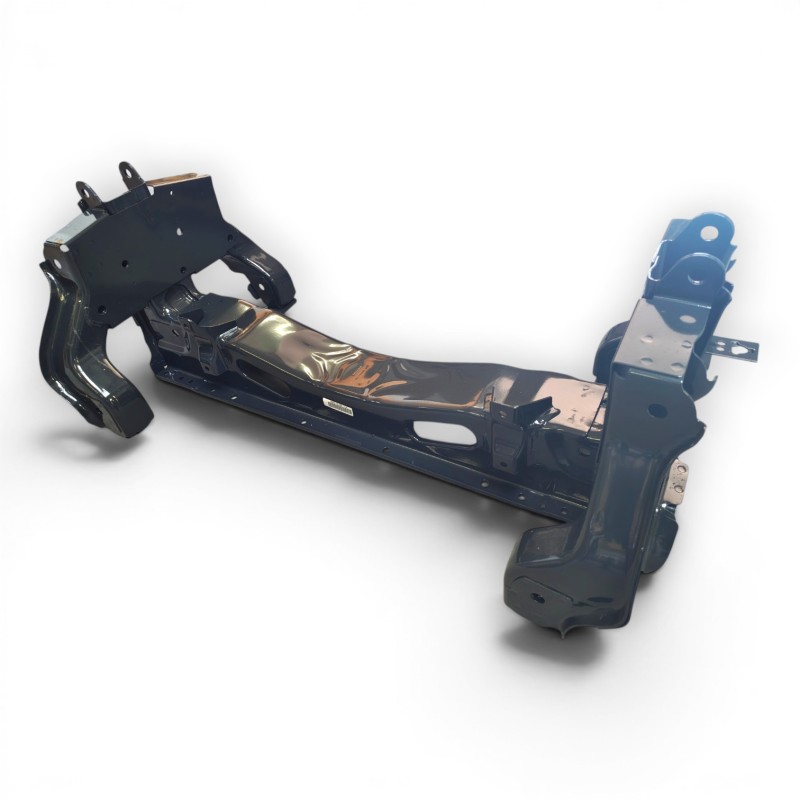

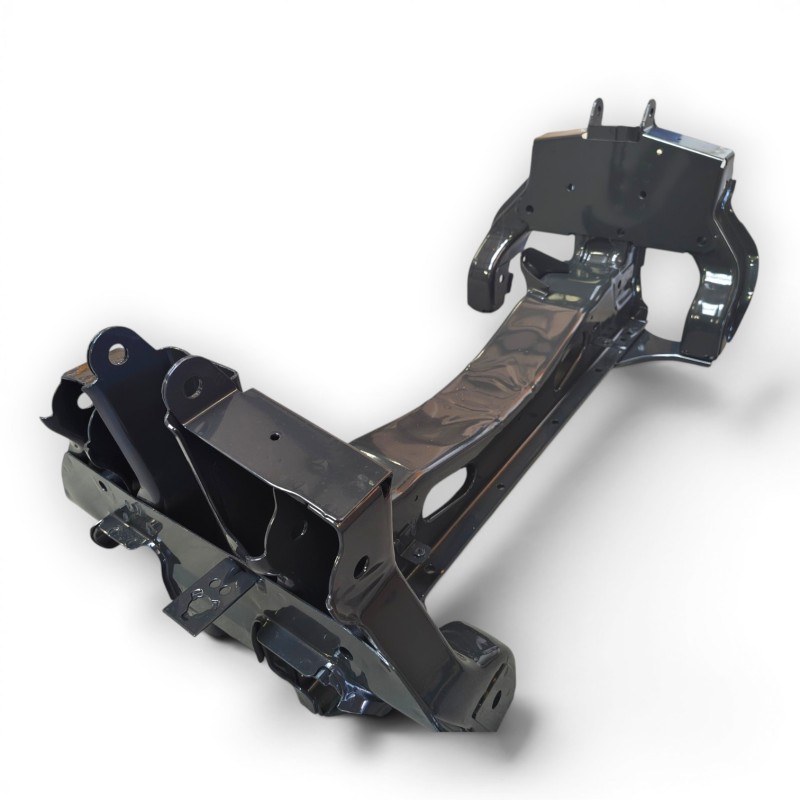

The front cradle, also called the front axle crossmember, is the master structural component of the front chassis of your Iveco Daily 35S single-wheel version. On versions equipped with quad leaf suspension (transverse leaf spring suspension), the cradle is the central anchor point for all geometry elements: suspension arms, transverse leaf spring, and parallelism reference points. Its rigidity directly determines steering precision and vehicle safety.
⚠️ Critical Point: unlike other configurations, the quad leaf suspension of the Iveco Daily has no parallelism adjustment. In the event of cradle deformation from an impact, it is impossible to correct the geometry without replacing the component – a simple geometry check will not be sufficient.
⚙️ Technical Specifications
✅ Iveco OEM Reference: 5802696896
✅ Compatibility: Iveco Daily 35S – single wheels – from 2014 onwards
✅ Suspension Type: quad leaf – transverse leaf spring suspension
✅ Robust steel structure – designed to withstand load stresses and dynamic solicitations of the front axle
✅ Transverse leaf spring not included – to be ordered separately according to your configuration

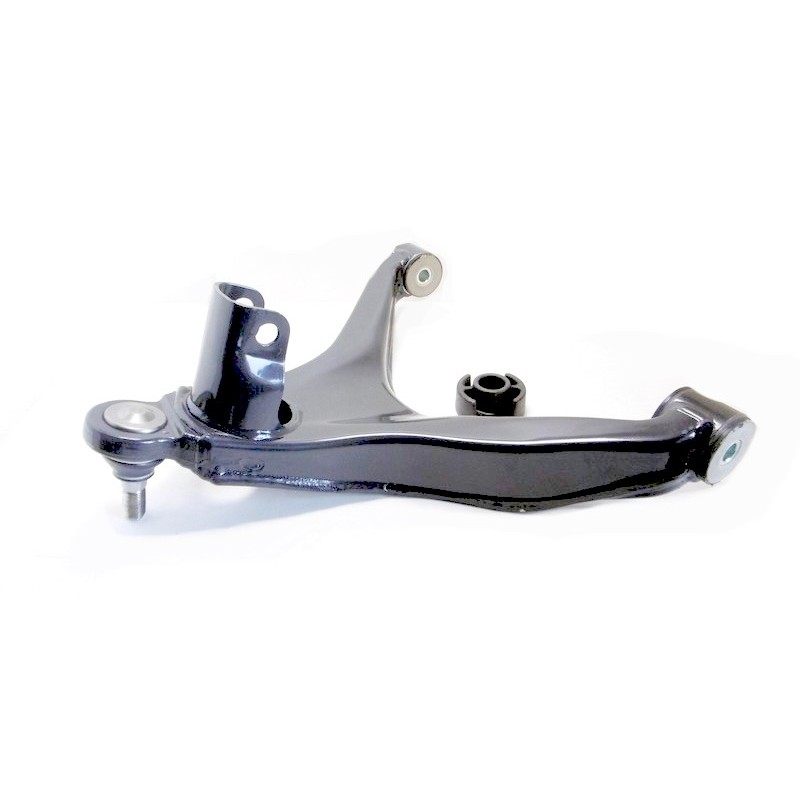

✅ Suspension arms not included – to be reused if in good condition or replaced during the intervention
⚠️ When to Replace the Front Cradle?
The front cradle cannot be repaired and tolerates no residual deformation. Replacement is necessary in the following cases:
❌ Frontal or under-chassis impact – even moderate impact can deform the cradle and permanently distort front axle geometry
❌ Parallelism impossible to correct – on this quad leaf suspension, the complete absence of adjustment means that a deformed cradle cannot be compensated: replacement is the only solution
❌ Advanced structural corrosion – the crossmember exposed to spray and humidity can corrode to the point of compromising its rigidity and fixing points
❌ Rapid and uneven tyre wear – direct symptom of distorted geometry linked to a deformed cradle
❌ Degraded steering behaviour – pulling, instability in straight lines or cornering with no other identified cause
🚨 Warning: after any cradle replacement, a complete front axle geometry check is mandatory. Without this step, even a new cradle will not guarantee correct parallelism if other components have been stressed during the impact.
🔩 Fitting Advice
🔹 Before any removal, properly support the powertrain – the cradle carries part of the engine and gearbox load
🔹 Systematically inspect the suspension arms and transverse leaf spring during the intervention – an impact damaging the cradle may have stressed these adjacent components
🔹 Do not reuse self-locking bolts that have been used during an impact – replace them without fail to guarantee manufacturer torque specifications
🔹 Respect the sequence and torque specifications when reinstalling arms and leaf spring anchor points – loose fastening distorts the geometry immediately after restart
💡 Since the transverse leaf spring and suspension arms are sold separately, prepare your intervention by checking the condition of these components before ordering to avoid a second vehicle immobilization
🛒 Complementary Parts to Consider
An intervention on the front cradle is the ideal opportunity to check and renew components directly linked to the front axle:
🔹 RAXOR Parts – front shock absorbers to be checked in case of under-chassis impact
🔹 Find all our front axle components for Iveco Daily and our suspension components for Iveco Daily in our catalogue.
