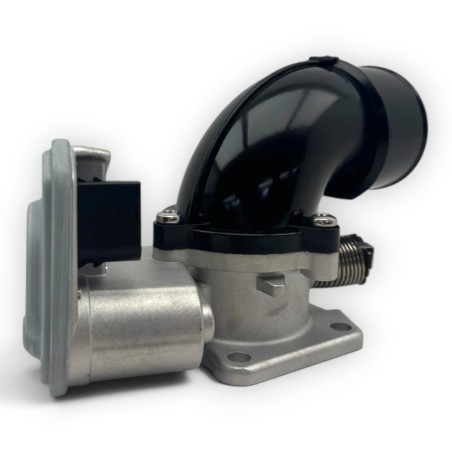

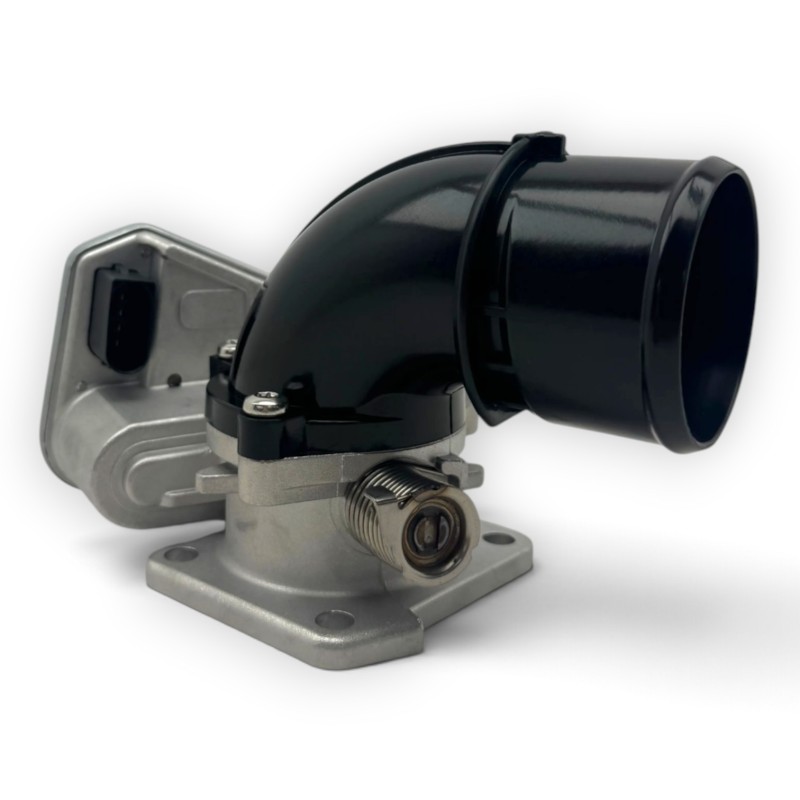

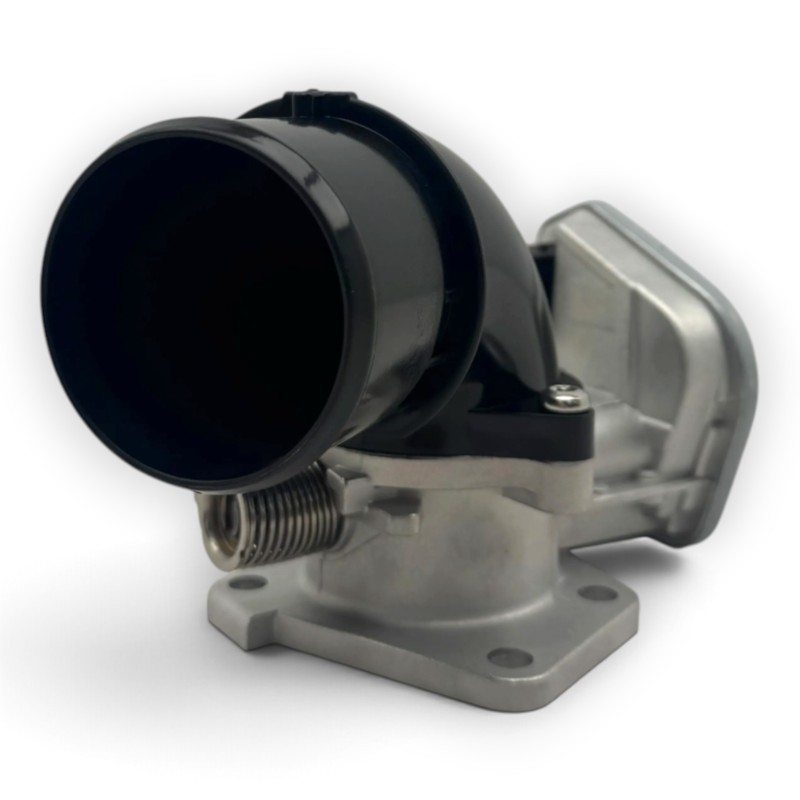

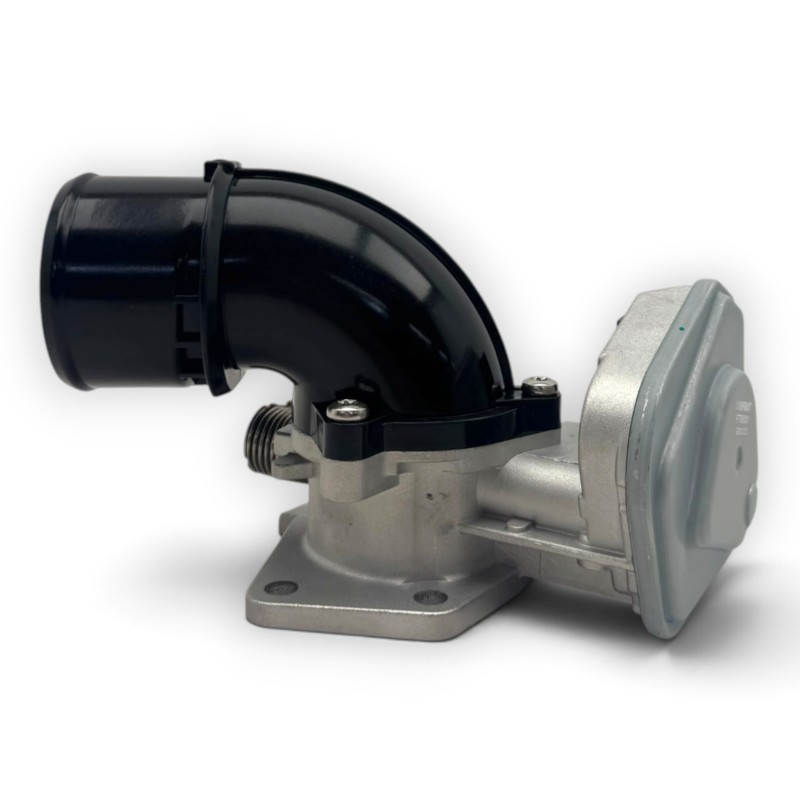

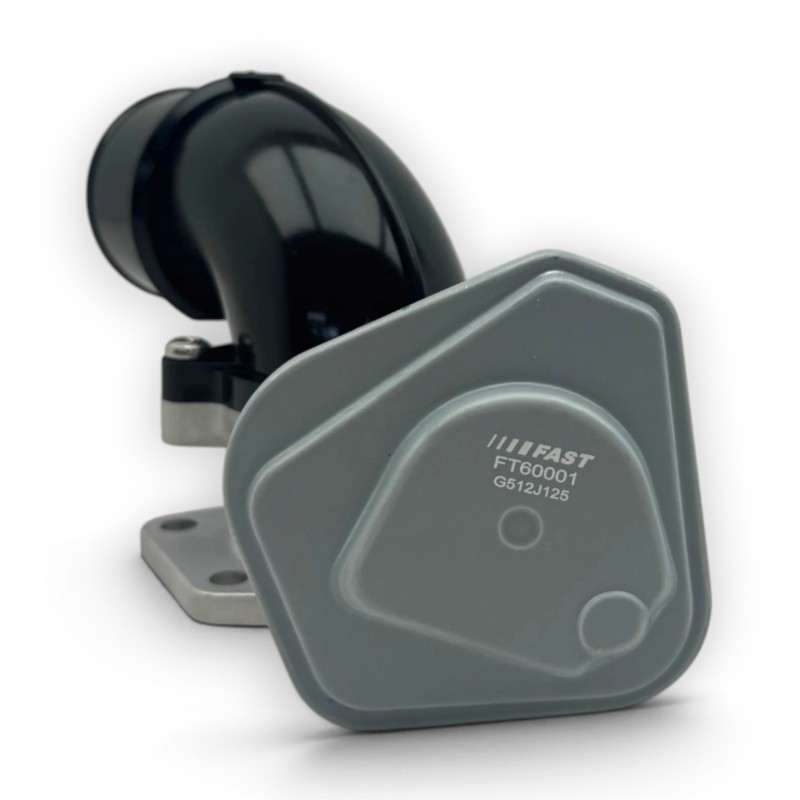

⚙️ Iveco Daily 3.0 HPI Throttle Body – Precise intake air metering for a smooth and responsive engine
🔧 What is this part used for?
The throttle valve, or throttle body, is the component that regulates the amount of air entering the engine. Mounted on the intake system, downstream of the air-to-air intercooler, it features a flap electrically controlled by the engine control unit, which opens or closes to precisely regulate the intake airflow. On the Iveco Daily’s 3.0 HPI F1C diesel engines, it helps manage combustion and exhaust gas recirculation, and closes when the engine is shut off to prevent jerks and jolts caused by the engine cutting out. A faulty throttle valve disrupts the engine’s air supply, causing power loss and forcing the engine into degraded mode.
This throttle body is a new, aftermarket replacement part designed to be an exact fit for the original equipment on Iveco Daily models equipped with the 3.0 HPI F1C Euro 4 and Euro 5 engines. It matches the mounting dimensions, throttle bore diameter, and electrical connector of the OEM part, allowing for direct installation without modifying the intake system or wiring harness.
✅ Technical Specifications
Compatibility: Iveco Daily with 3.0 HPI F1C Euro 4 / Euro 5 engine (2006–2016), including Daily MY2009
Type: Electrically controlled throttle valve (throttle body)
Location: Engine air intake system
Function: Regulates the amount of air admitted into the engine
Quality: Aftermarket part
Condition: New
Part Number: KPX64089
Iveco OEM Equivalent: 504264089 / 504105594 / 504345917
✅ Why replace this part?
✅ A seized or fouled throttle valve no longer regulates the air intake properly, resulting in a loss of power, hesitation during acceleration, and erratic engine operation.
✅ A malfunction in the electric motor or the throttle position sensor triggers a fault code, causes the check engine light to come on, and puts the vehicle into limp mode, severely limiting its use.
✅ Replacing it with a new throttle body restores precise air intake, smooth driving, and proper engine management.
✅ Signs of wear / failure / replacement
Signs of a faulty throttle body on the Iveco Daily 3.0 HPI include the engine warning light coming on, the vehicle entering limited-power mode, unstable idling or stalling, and jerky acceleration. A throttle valve that no longer closes properly often results in noticeable jolts when the ignition is turned off. Carbon deposits and oil vapors accumulated in the intake are a common cause of the throttle valve sticking. Reading the fault codes with a diagnostic scanner, along with a visual inspection for dirt buildup and a check of the connector, will confirm the failure before replacement.
✅ Installation Tips
Turn off the ignition and disconnect the battery before beginning work. Remove the intake hoses, then disconnect the wiring harness before removing the housing. Thoroughly clean the flange and intake ducts to remove carbon and oil deposits, and always replace the gasket. Check the condition of the connector and wiring harness before reconnecting them. After installation, clear the fault codes and, if necessary, program the throttle valve using a diagnostic tool. Installation by a qualified professional is recommended.
✅ Technical advice RAXOR Parts
On the Iveco Daily 3.0 HPI, contamination of the butterfly valve is often caused by deposits from exhaust gas recirculation and oil backflow from the breather or the turbocharger. Before installing the new valve, check the condition of the EGR valve and its lines: find all Iveco Daily turbocharger: unless the underlying cause is addressed, the new flap will quickly become clogged. Finally, be sure to replace the gasket and check the housing adapter during installation.
✅ Why choose RAXOR Parts?
✅ New throttle body, part number KPX64089, OEM equivalent to Iveco 504264089, compatible with Iveco Daily 3.0 HPI F1C Euro 4 and Euro 5, direct installation without modification.
✅ Gasket, adapter, and all parts in the Iveco Daily throttle body category are available for a complete intake system overhaul.
✅ In stock and fast shipping to minimize downtime for your work vehicle.
