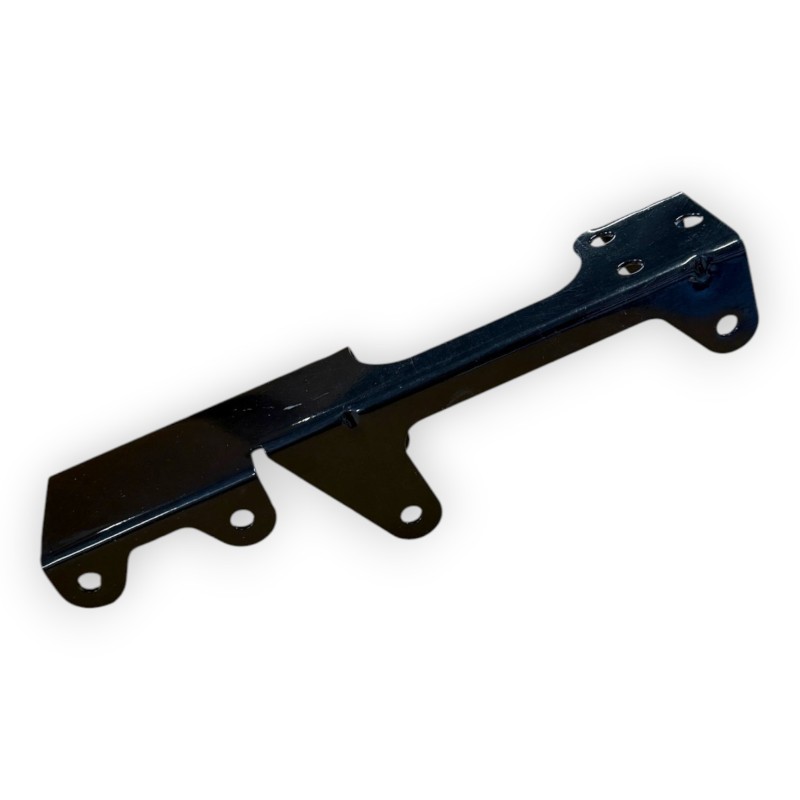

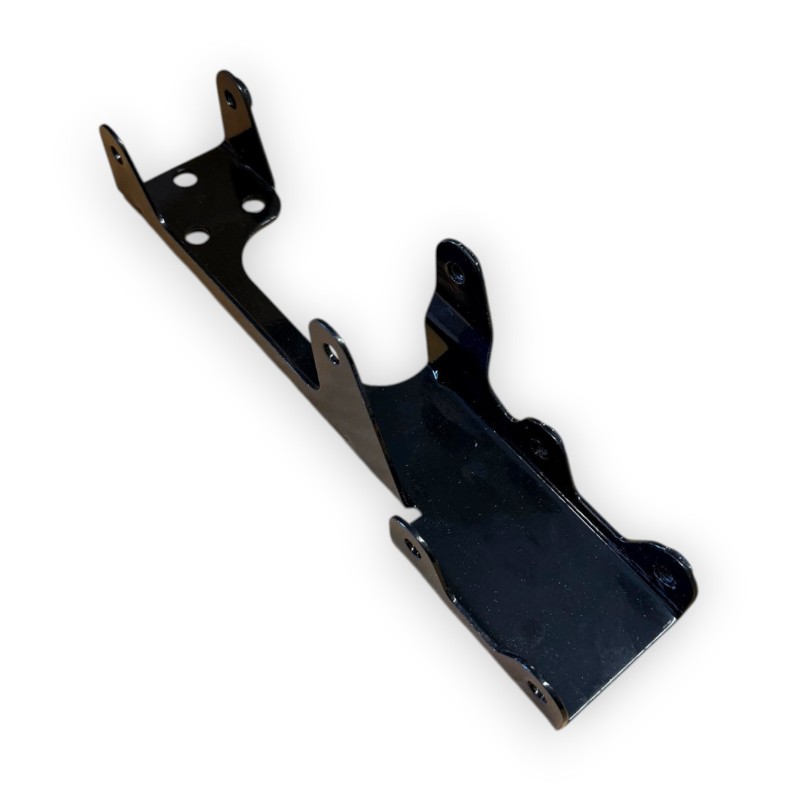

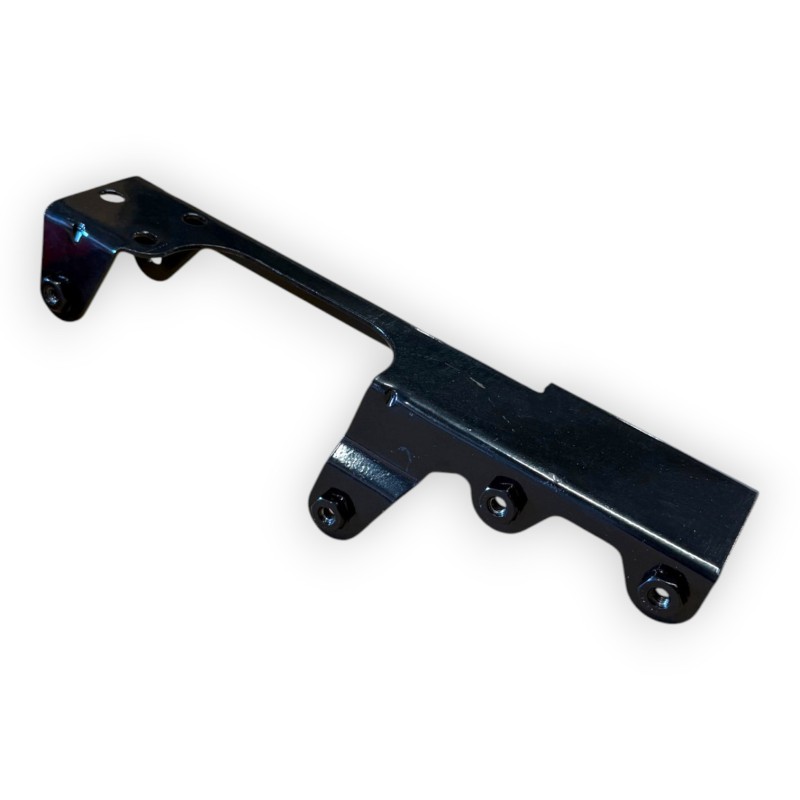

Right water radiator support bracket – Iveco Daily MY2009 (2006-2011)
The water radiator support bracket for Iveco Daily MY2009, original reference 500333124, is the lateral fastening component that holds the water radiator in position within the engine compartment. It ensures the rigorous retention and precise alignment of the radiator relative to the chassis and other cooling circuit components. Without a support in good condition, the radiator is exposed to vibrations, impacts and parasitic movements that can cause cracks, leaks or accidental contact with other engine parts.
⚠️ Important mounting marker: this is the support on the right side in the direction of vehicle travel, or the left side when facing the engine (passenger side).
🔧 Reference and compatibility
Iveco original reference: 500333124. Compatible with Iveco Daily MY2009, produced from 2006 to 2011, in all body and engine variants (2.3L HPI and 3.0L HPI). If in doubt, contact our technical support team by providing your vehicle's chassis number.
⚙️ Technical specifications
✅ OEM reference: 500333124
✅ Compatibility: Iveco Daily MY2009 – 2006 to 2011
✅ Position: Right side in direction of travel / left side facing engine (passenger side)
✅ Function: Lateral fastening and retention of the water radiator in the engine compartment
✅ Installation: Direct fit, no modifications required
✅ Condition: New
⚠️ Signs of wear: when to replace the radiator support bracket?
A failed or broken radiator support may seem minor but its consequences are serious: a poorly retained radiator transmits excessive vibrations throughout the cooling circuit and can cause leaks that are difficult to locate.
- ❌ Radiator visibly loose or tilted in its housing
- ❌ Abnormal vibrations or noises at the front of the vehicle, especially when cold or at idle
- ❌ Cooling fluid leak with no apparent cause on the radiator itself
- ❌ Support cracked, corroded or broken noticed during visual inspection
- ❌ Radiator contact with other components (belts, hoses, fan)
🚨 A poorly secured water radiator can gradually deteriorate and cause engine overheating. Replacing the support bracket 500333124 at the first signs of degradation prevents costly engine damage.
🔩 Installation tips
🔹 Before disassembly, precisely mark the original position of the radiator to ensure perfect realignment upon reassembly.
🔹 Check the condition of the left side support in the direction of travel (right side facing engine) at the same time: both supports work in tandem and their wear is usually simultaneous.
🔹 Inspect the condition of the upper and lower radiator hoses during any work in this area.
🔹 After reassembly, ensure there is no play in the radiator by performing a gentle manual pull before closing the engine compartment.
💡 Take the opportunity to bleed the cooling circuit and check the level and quality of the cooling fluid.
🛒 Related components to check simultaneously
For a complete overhaul of your Iveco Daily MY2009 cooling system, find on RAXOR Parts:
- ✅ Complete engine cooling range for Iveco Daily
- ✅ Engine radiator Iveco Daily 2.3L HPI (2006-2011) – to replace if cracked or clogged
- ✅ Engine radiator Iveco Daily 3.0L HPI (2006-2011) – depending on engine variant
- ✅ Upper and lower radiator hoses – to check during any work in this area
- ✅ Expansion tank – to check if coolant level is abnormally low
- ✅ Thermostat – often faulty during repeated overheating
