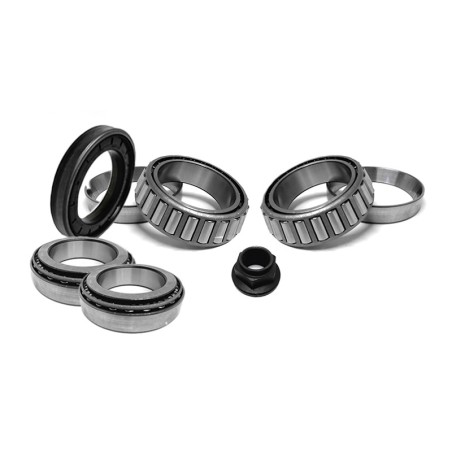

⚙️ Iveco Daily 35C Rear Axle Bearing Kit – Complete overhaul of the axle housing and differential
🔧 What is this part used for?
The rear axle bearing kit includes the wear components that ensure the rotation and sealing of the rear axle on the Iveco Daily 35C. The two axle housing bearings guide the drive pinion, which receives torque from the driveshaft and transmits it to the ring gear. The two differential bearings support the differential housing and the ring gear, absorbing the radial and axial forces generated by the transmission of torque to the rear wheels. The oil seal ensures the rear axle housing is sealed at the transmission flange, and the nut secures the pinion and flange assembly. Worn bearings create play in the bevel gear set, cause a characteristic axle noise, and eventually damage the ring gear and drive pinion.
This kit is brand new and combines all the parts needed to rebuild the axle housing and differential into a single part number. It is designed for the rear axle of the Iveco Daily 35C, model years MY2009, MY2012, MY2016, MY2019, MY2022, and MY2024, and is an exact replacement for the original components without requiring any modification to the axle housing.
✅ Technical
Specifications
Compatibility: Iveco Daily 35C – MY2009, MY2012, MY2016, MY2019, MY2022, MY2024
Type: Rear
Axle Repair Kit
Location: Rear Axle – Axle Housing and Differential
Housing
Contents: 1 axle housing nut, 1 axle housing oil seal, 2 axle housing bearings (primary and secondary), 2 differential
bearings
Function: Guides the drive pinion and differential; seals the axle
housing
Condition: New
Part Number: IVEKITPONT35C
✅ Why replace this part?
✅ Worn axle bearings cause play between the drive pinion and the ring gear, which generates increasing axle noise and accelerates wear on the bevel gear set.
✅ A faulty axle housing oil seal causes an axle oil leak and exposes the bearings to insufficient lubrication and rapid failure.
✅ Replacing all four bearings, the oil seal, and the nut at the same time restores quiet operation and a leak-free rear axle, eliminating the need for future repairs due to a forgotten component.
✅ Symptoms of Wear / Failure / Replacement
The most common symptom is a whistling or purring noise coming from the rear of the vehicle, which varies depending on whether the Daily is accelerating, driving at a constant load, or decelerating. A clunking noise when accelerating or releasing the accelerator may indicate excessive play in the drive pinion. Oil stains around the rear axle housing, on the transmission flange, or on the oil pan indicate that the oil seal needs to be replaced. Before concluding that the bearings are worn, checking the play at the transmission flange and inspecting the cross members, the transmission bearing, and the axle flanges can help rule out other sources of noise or vibration.
✅ Installation
Tips
Overhauling a rear axle requires removing the drive pinion and the differential housing; this must be performed by a professional equipped with a puller, a press, and a dial indicator. It is essential to adhere to the manufacturer’s specifications for pinion bearing preload, tooth clearance, and bevel gear contact area to prevent any noise after reassembly. The axle housing nut must always be replaced and tightened to the specified torque. Carefully clean the housing, check the condition of the bevel gear set and the shims, then fill with the manufacturer’s recommended axle oil to the correct level.
✅ Technical advice from RAXOR Parts
When rebuilding the rear axle on an Iveco Daily 35C, always check the drive shaft universal joints, the transmission bearing silent block, and the tightness of the axle flanges: play in any of these components causes vibrations that quickly wear out new bearings. If the bevel gear set or differential has worn or chipped teeth, simply replacing the bearings will not be enough to eliminate the noise: check out our differential parts for the Iveco Daily rear axle. If the damage is too extensive, replacing the entire Iveco Daily rear axle may be faster and more cost-effective than a repair.
✅ Why choose RAXOR Parts?
✅ Brand-new kit, part number IVEKITPONT35C, complete in a single order: four bearings, oil seal, and axle housing nut for the Iveco Daily 35C from MY2009 to MY2024.
✅ Additional parts available (differential kits, bevel gear sets, universal joint crosses) for a complete rear drivetrain overhaul.
✅ In stock and fast shipping to minimize downtime for your work vehicle.
