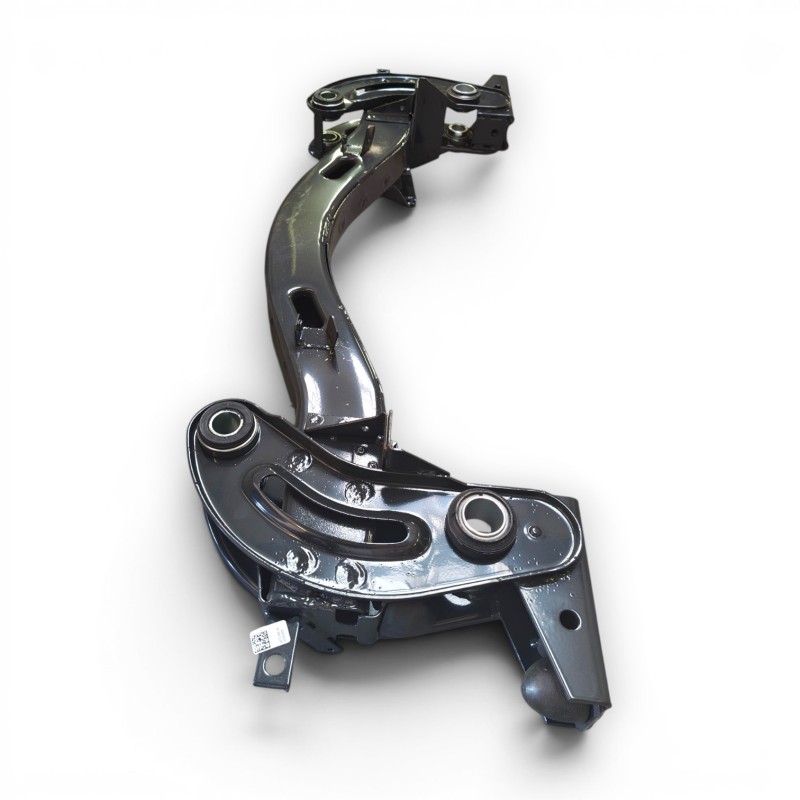

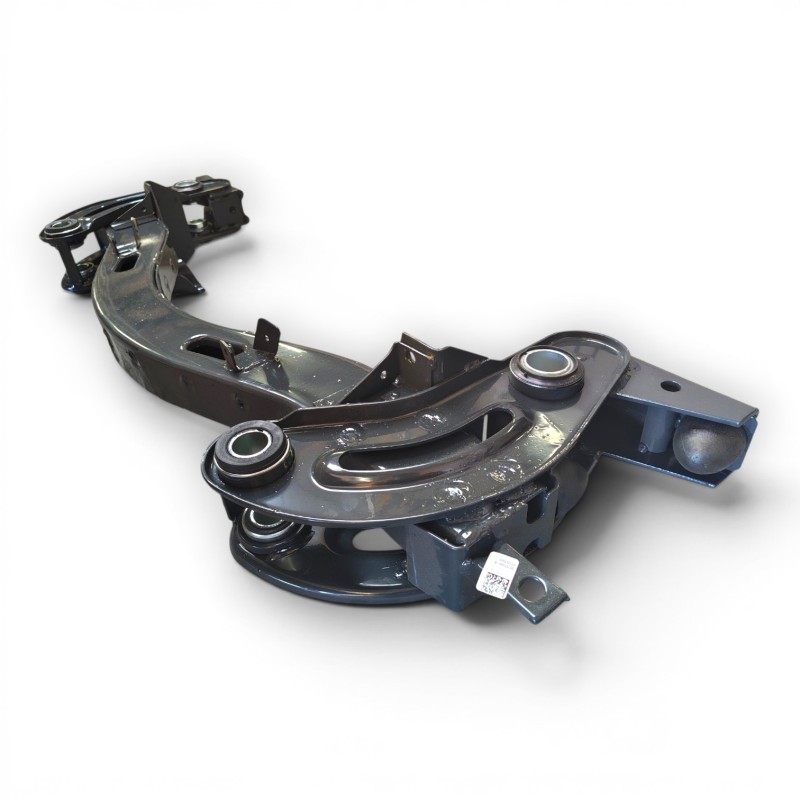

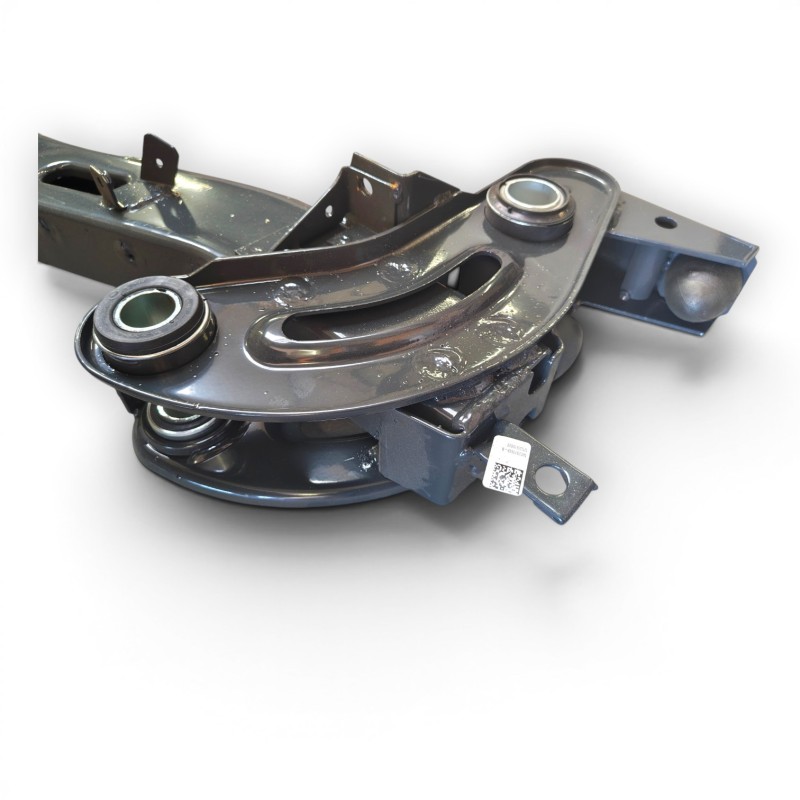

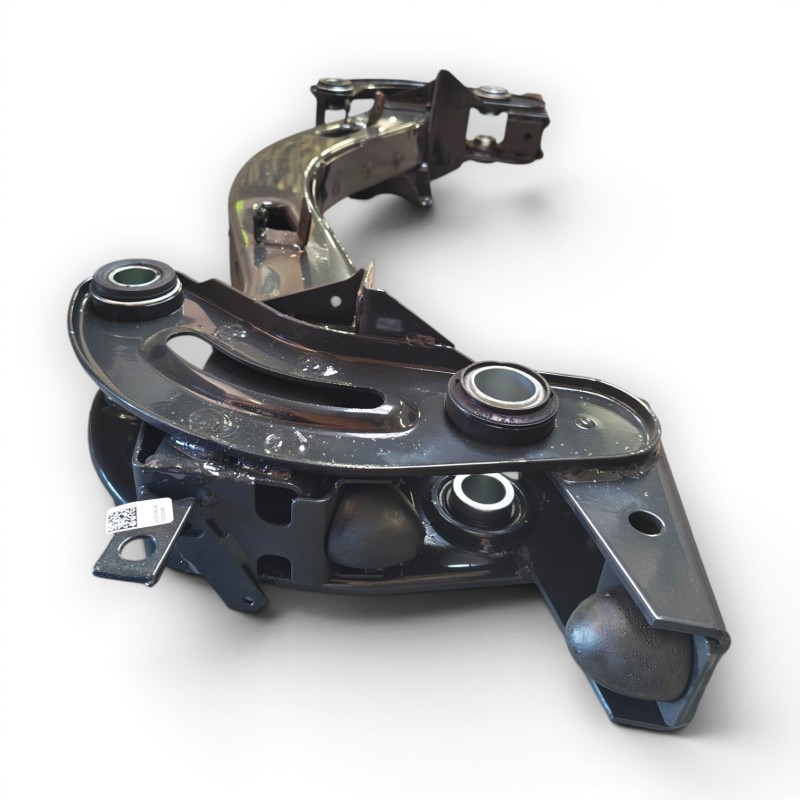

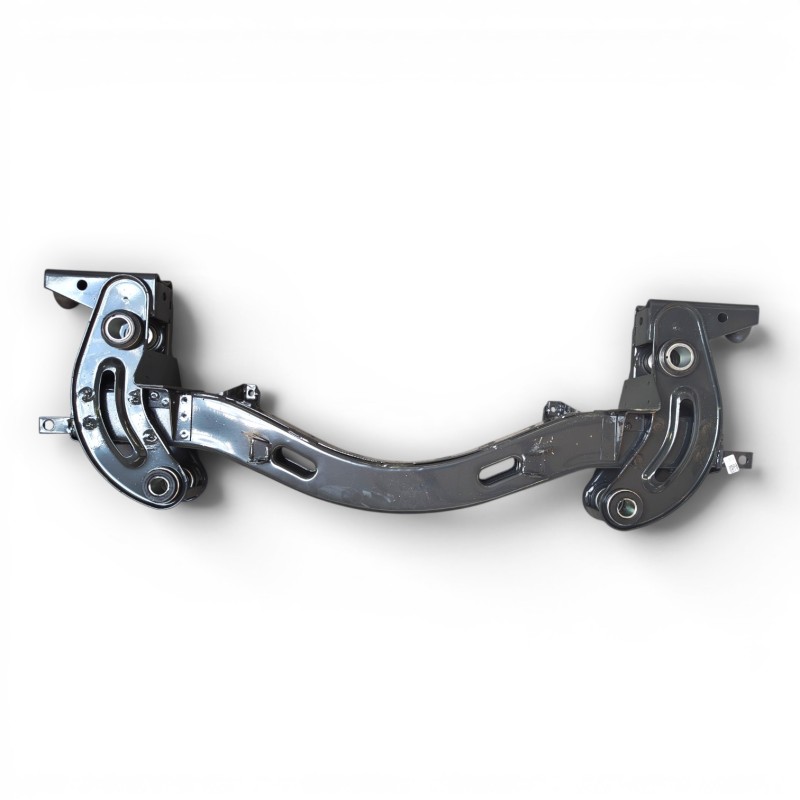

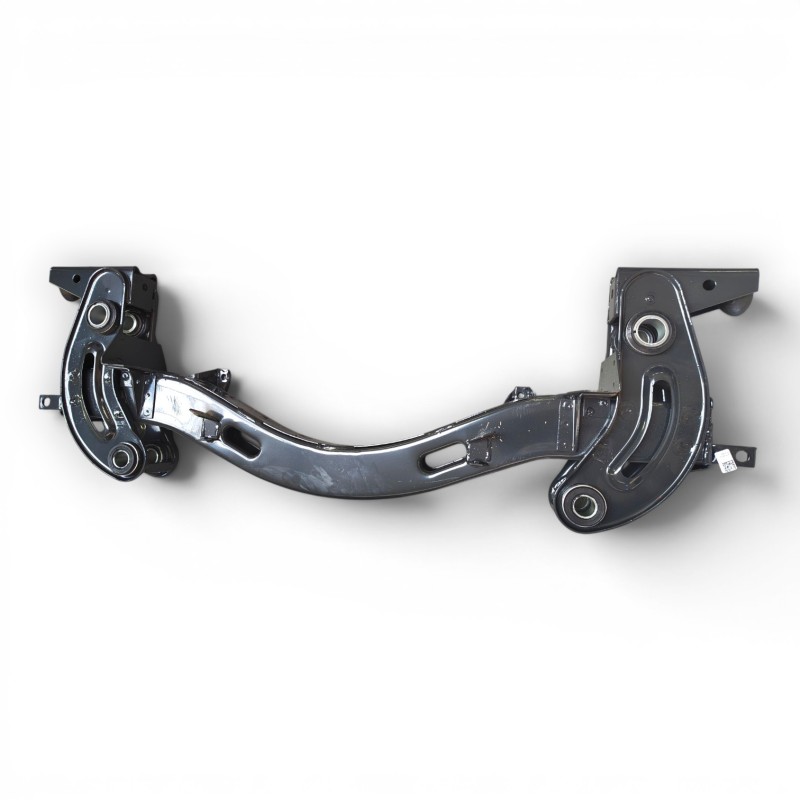

🔧 Engine Cradle Iveco Daily – Front Crossmember with Bushings Installed
The engine cradle, also known as the front crossmember, is the central structural element of your Iveco Daily front axle. It ensures the anchoring of the engine, gearbox, suspension arms and torsion bar, guaranteeing the rigidity of the entire chassis and steering precision. This cradle is supplied complete with suspension arm bushings and torsion bar bushings already installed: it is ready to fit directly, with no additional work required.
⚙️ Technical Specifications
✅ Iveco OEM Reference: 5802511809
✅ Suspension arm bushings installed – immediate replacement, no press required
✅ Torsion bar bushings installed – vibration isolation guaranteed from installation
✅ Robust steel structure – mechanical resistance to high loads and demanding terrain conditions
✅ Ready-to-install component – saves workshop time, no sub-assemblies to assemble
✅ Compatibility: Iveco Daily 35S / 35C – MY2014 to MY2022
⚠️ When to Replace the Engine Cradle?
The engine cradle is a structural component that cannot be repaired: it must be replaced in the following situations:
❌ Frontal or side impact causing deformation of the crossmember, even slight – any deformation alters front axle alignment and steering geometry
❌ Advanced corrosion attacking the cross-section of the crossmember – a rusted structure loses its rigidity and can no longer withstand dynamic stresses
❌ Torn or burst bushings causing knocking noises under the chassis, abnormal vibrations or steering inaccuracy
❌ Uneven tyre wear associated with unexplained front axle misalignment
❌ Steering play or instability detected during pit inspection with no other cause identified
🚨 Important: after an impact damaging the cradle, replacement must be followed by complete front axle geometry alignment. Do not overlook this safety aspect.
🔩 Fitting Advice
🔹 Compare the old and new cradles before removal to verify configuration (anchor point positioning, bushing installation direction)
🔹 Support the engine and gearbox before removal – the cradle carries the entire powertrain assembly
🔹 Replace the cradle mounting bolts on the chassis if they have been stressed during an impact – plastic-lock or self-locking bolts must not be reused
🔹 Respect manufacturer torque specifications when reinstalling suspension arms and torsion bars
💡 Since the cradle is supplied with bushings pre-installed, no press is required – the operation can be performed in a standard workshop
🛒 Complementary Parts to Consider
When replacing the engine cradle, remember to check and renew the front axle components directly related:
🔹 Torsion bar bushings 35C – to be systematically checked during cradle intervention
🔹 Left front torsion bar 35C – to be inspected if the vehicle has suffered a left-side impact
🔹 Right front torsion bar 35C – to be inspected if the vehicle has suffered a right-side impact
🔹 Find all front axle parts for Iveco Daily and suspension parts for Iveco Daily in our catalogue.
