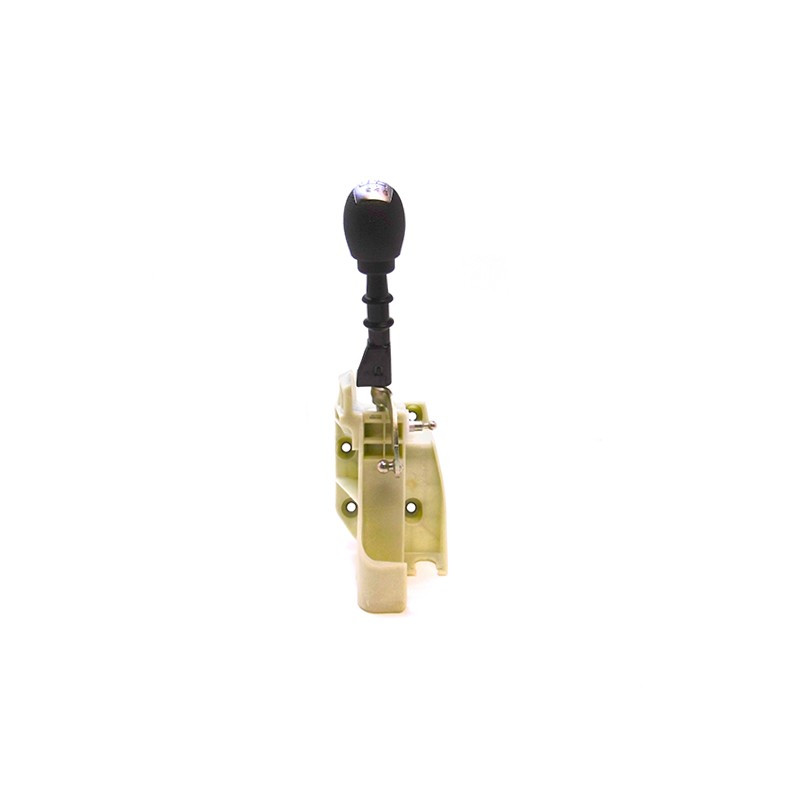

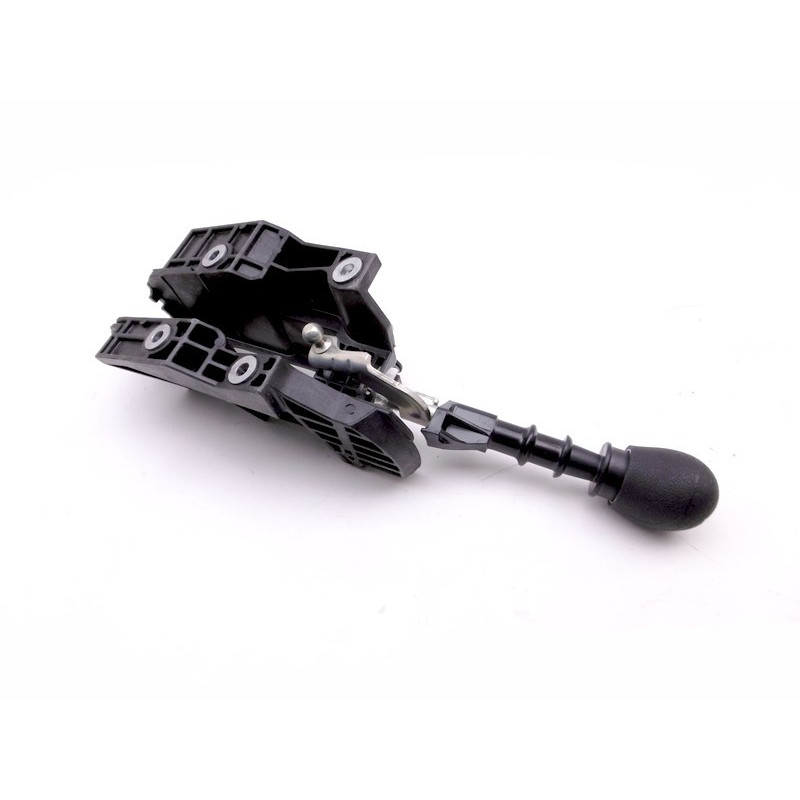

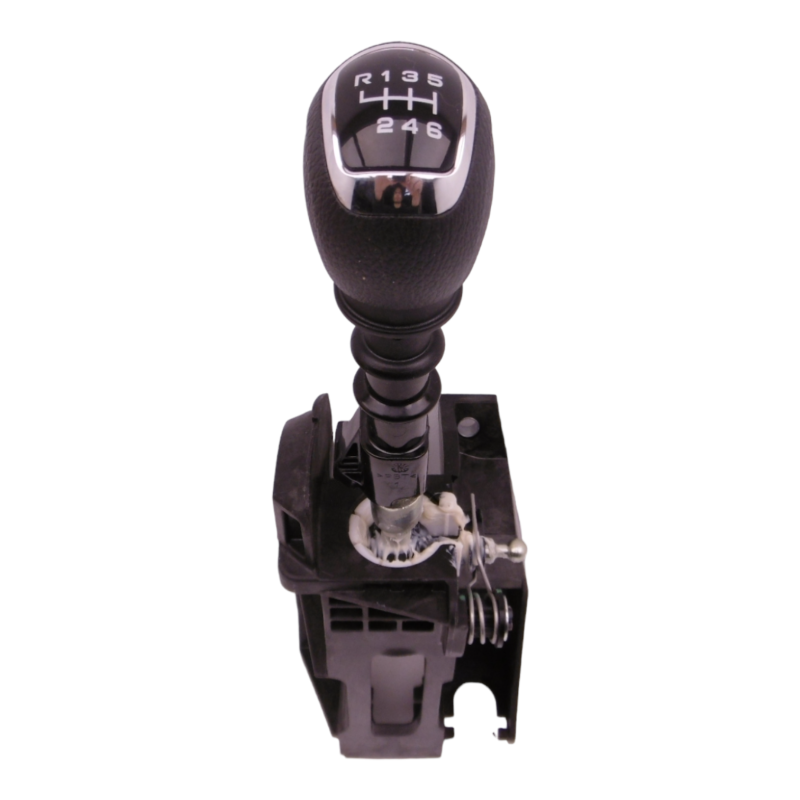

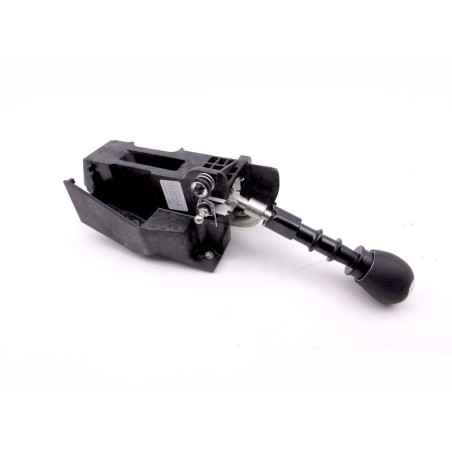

6-speed gear lever for Iveco Daily
Main features
- Compatibility:
- Number of gears: This LEVER has 6 gears
- Simplified installation: Accompanied by detailed, illustrated guide
Steps for replacing the LEVER gear
Required tools
- Multi-grip pliers
- Torx screwdriver
- Ratchet with 10 cm extension
- 12 mm socket
Detailed procedure
- Unclip the bellows from LEVER: Remove it carefully to avoid damage.
- Remove the plastic trim: Remove the SCREW Torx securing the upper surround, then gently unclip the plastic in tie-rod.
- Remove the bracket from the LEVER: Use the ratchet, extension, and 12 mm sleeve. To avoid losing the SCREW in the dashboard, place rags or paper around the LEVER.
- Disconnect the cables: Press the tabs (one in tie-rod, the other by pushing) to remove the cables from the LEVER.
- Unclip the cables from the LEVER: Lock the axle with a clamp multi-socket, then use a large flatSCREW flat screwdriver to make LEVER.
Once the LEVER has been removed, reinstall the new one by following the steps in reverse order.
Assembly images
Tips after replacement
If there is still play in the LEVER after replacement, it is likely that the gear cables are worn and need to be replaced.
