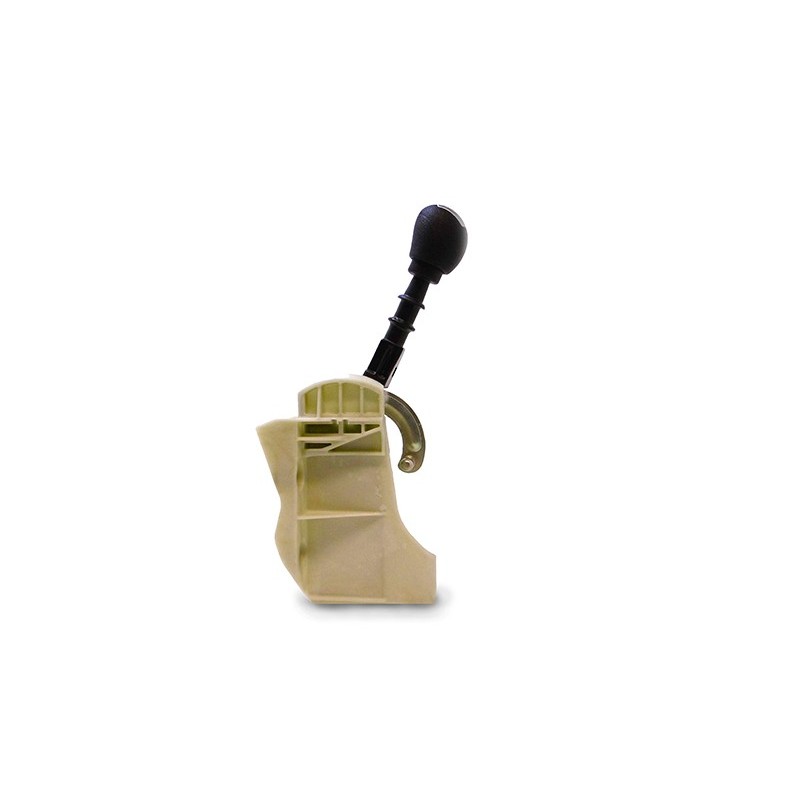

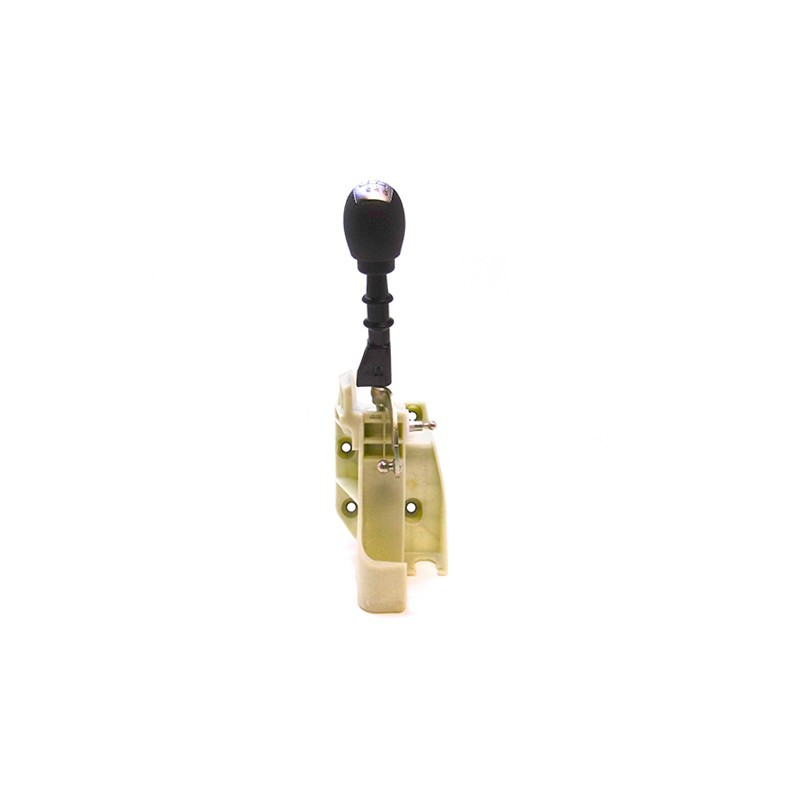

6-speed gear lever for Iveco Daily with bracket for Iveco Daily 3.0l HPI
This is the complete LEVER gear lever sold with bracket and knob.
If you are having trouble shifting gears, if the LEVER is not precise, and if it has abnormal play, do not wait to replace it, as this could damage the gearbox
ASSEMBLY TUTORIAL GEAR LEVERS IVECO DAILY
Allow 30-40 minutes for the job. It's very easy to do!
Box with TOOLs: A clamp multi-socket, SCREW Torx, a ratchet with a 10 cm extension, a sleeve 13 mm
Here are the important steps for changing your LEVER gears. Follow along with the photos.
1°) Start by carefully unclipping your bellows from LEVER.
2°) Remove the SCREW Torx screw that holds the plastic surround of the LEVER in place at the top. Then pull this plastic trim toward you to unclip it.
3°) Using a small ratchet, an extension, and a 13 mm sleeve, remove the bracket from the LEVER. I recommend placing paper or rags around the LEVER to prevent the SCREW from falling into the dashboard.
4°) To remove the two cables from the LEVER, simply press the two tabs, one in tie-rod and the other by pushing.
5°) To unclip the cables from the LEVER, lock the axle with a clamp multi-plug and do LEVER with a large flat SCREW screwdriver.
And that's it! All you have to do now is reverse the process to reassemble it!
If, after replacing your LEVER gear, there is still play in the LEVER, you will need to replace the gear cables. For more information about this product, click here.
