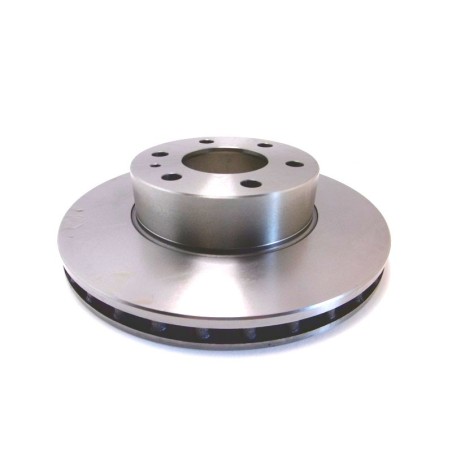

🔧 Front brake disc for Iveco Daily 35S / 29L – Performance and Safety
🛠️ Product description
The front brake disc is an essential component of the braking system, ensuring effective and safe braking. It works in tandem with the brake pads to slow down and stop your vehicle by converting kinetic energy into heat. A ventilated disc improves heat dissipation, reducing the risk of overheating and premature wear.
This front brake disc is designed for Iveco Daily 35S and 29L single-wheel models, ensuring a perfect fit and optimal compatibility.
📦 Product features
✔️ Compatible models: Iveco Daily 35S and 29L equipped with single wheels
✔️ Disc type: Internally ventilated for better heat dissipation
✔️ What is a ventilated disc?
A ventilated brake disc is designed with spaces between two layers of metal, allowing for better air circulation to dissipate the heat generated by braking. This reduces the risk of deformation and improves the service life of the discs and pads.
✔️ Compatibility: Product compatible with Iveco code IVE504121605
✔️ Number of mounting holes: 6
✔️ Item sold individually
💡 Maintenance tip: Replace the brake discs and pads at the same time for optimal and consistent braking.
🛠️ Installation tutorial – Changing your front discs and pads
🔧 Tools required:
- Allen keys
- Ratchet with extension
- 17/24/27 mm sockets
- Hammer
- Flat wrench
- Push-piston or clamp-GASKET
- Wire brush
🚗 Replacement steps:
1️⃣ Remove the front wheels using a 27 mm sleeve after lifting and securing the vehicle with jack stands.
2️⃣ Remove the front hub with a 17 mm sleeve.
3️⃣ Remove the CAPs from the sliders and remove the SCREW slide pins to remove the caliper.
4️⃣ Remove the brackets from the calipers from the rear using a 24 mm sleeve.
5️⃣ Remove the disc by tapping it with a hammer to loosen it, then clean the surface with a wire brush and a bellowste.
6️⃣ Degrease the new disc with brake cleaner.
7️⃣ Install the new disc and reassemble the hub.
8️⃣ Clean the caliper pads and install the new brake pads. PLATEts.
9️⃣ Reassembly of the bracket caliper with the sleeve 24 mm.
🔟 Insertion of the PLATEs into the bracket.
1️⃣1️⃣ Push back the pistons of the stirrups with a GASKET clamp or apiston.
1️⃣2️⃣ Check the caliper slides and replace them if necessary.
1️⃣3️⃣ Install the wear indicator and reassemble the caliper with the SCREW slides.
1️⃣4️⃣ Replace the CAPs.
🚨 Before driving, press the brake pedal several times until it hardens to properly reposition the pistons of the caliper.
🚀 Why choose RAXOR Parts?
✅ Compatibility check – We make sure your part is perfectly suited to your vehicle.
✅ Technical expertise – A qualified team to help you identify the right parts.
✅ Best value for money – Original and adaptable spare parts for IVECO Daily, tested to ensure safety and durability.
✅ Ultra-fast shipping – Delivery in less than 24 hours to minimize your vehicle's downtime.
🔗 Related accessories for optimal braking
🔹 Front brake pads – For optimal friction and effective braking.
🔹 Wear indicators – Indicate when to replace your PLATEts.
🔹 Brake calipers – Ensure even pressure on the pads for maximum performance.
