Rear Brake Wear Indicator 35S Voor Iveco Daily

Rear brake wear indicator – Iveco Daily 35S single rear wheels (MY2009 to MY2024)

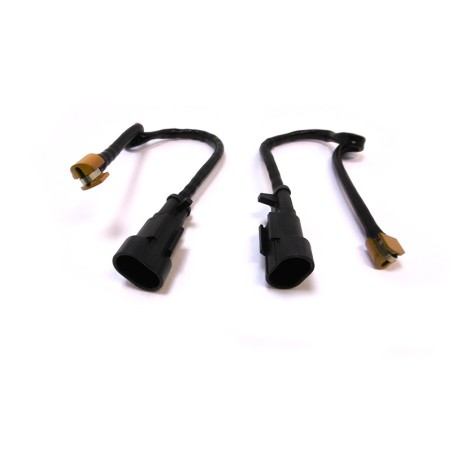

The rear brake wear indicators for Iveco Daily 35S, reference KPX7355, are the electrical sensors integrated into the rear brake pads that trigger the wear warning light on the dashboard as soon as the pads reach their critical wear threshold. On Iveco Daily 35S in intensive professional use — delivery, transport, construction — rear braking is subject to frequent and heavy stress. A functional wear indicator is the only early warning system allowing you to avoid metal-on-metal braking, destructive to discs and dangerous for vehicle and cargo safety.

💡 Supplied as a pair — one complete set for the rear axle (left + right), ready to install when replacing pads.

🔧 Reference and compatibility

KPX Parts reference: KPX7355. Compatible with:

• ✅ Iveco Daily 35S – single rear wheels only
• ✅ MY2009 (2006-2011)
• ✅ MY2012 (2011-2014)
• ✅ MY2016 (2014-2019)
• ✅ MY2019 (2019-2022)
• ✅ MY2022 (2022-2024)
• ✅ MY2024 (from 2024)
• ✅ 2.3L HPI and 3.0L HPI engines

⚠️ These indicators are specific to 35S versions with single rear wheels. They are not compatible with 35C, 50C, 65C, or 70C versions with dual wheels whose rear braking system differs. If in doubt, contact our technical service with your vehicle's chassis number.

⚙️ Technical specifications

✅ Reference: KPX7355
✅ Quantity supplied: 2 indicators (complete rear axle set)
✅ Position: Rear axle – left and right sides
✅ Application: Iveco Daily 35S – single wheels – MY2009 to MY2024
✅ Function: Brake pad wear warning light triggering on dashboard
✅ Mounting: Direct integration into rear brake pads
✅ Condition: New

⚠️ Signs of a failing or replacement-due wear indicator

The wear indicator is a wear item in its own right, to be replaced systematically with each rear brake pad change.

• ❌ Wear warning light illuminated continuously on the dashboard when pads appear correct — sign of cut or oxidized indicator wire
• ❌ Light flashing on and off intermittently — faulty contact or wire exposed by friction
• ❌ Light never illuminates despite worn pads — failed indicator, major risk of metal-on-metal braking without warning
• ❌ Visible corroded indicator or damaged wire during vehicle inspection underneath
• ❌ Metallic grinding noise at the rear during braking — sign that the indicator or pads have reached their limit

🚨 Never reuse a wear indicator after pad replacement: the metal tab is deformed or cut after disc contact and cannot ensure its warning role. Systematic indicator replacement with pads is an absolute safety rule.

🔩 Mounting tips

🔹 Always replace wear indicators when replacing brake pads — a worn indicator reused will provide no warning during the next wear cycle.
🔹 Check the wire and electrical connector condition during installation: exposed wire or corroded connector can cause false warnings or no warning.
🔹 Ensure correct indicator positioning in the pad notch before caliper reassembly: a mispositioned indicator may rub prematurely on the disc.
🔹 After reassembly, perform a few progressive brake applications to verify warning light extinction on the dashboard.
🔹 Take the opportunity to inspect rear brake disc thickness: out-of-spec discs must be replaced with pads to guarantee braking effectiveness.
💡 On Iveco Daily 35S in intensive use, it is recommended to check rear pad and indicator condition every 30,000 to 40,000 km or at each annual service.

🛒 Complementary parts to replace simultaneously

For a complete rear braking system overhaul of your Iveco Daily 35S, find on RAXOR Parts:

• ✅ Complete Iveco Daily braking range – pads, discs, calipers, indicators
• ✅ Iveco Daily 35S rear brake pads – to be replaced systematically with indicators
• ✅ Iveco Daily 35S rear brake discs – inspect thickness at each pad replacement
• ✅ Iveco Daily 35S front brake wear indicators – to check during the same service
• ✅ Iveco Daily 35S left rear brake caliper – to inspect for leaks or seizure
• ✅ Iveco Daily 35S right rear brake caliper – opposite side
• ✅ Iveco Daily 35S rear brake hose – to inspect during any braking work
