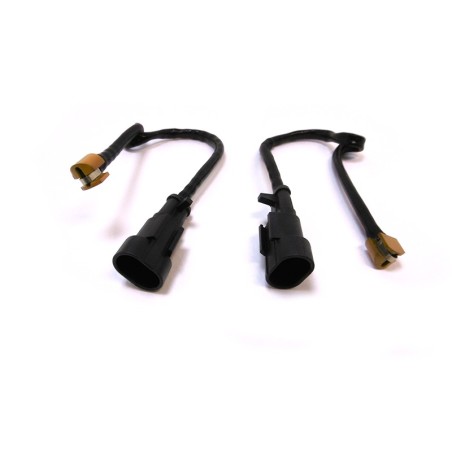

Rear brake wear indicators – Iveco Daily 35S single rear wheels (MY2009 to MY2024)
The rear brake wear indicators for Iveco Daily 35S, reference KPX7355, are the electrical sensors integrated into the rear brake pads that trigger the wear warning light on the dashboard as soon as the pads reach their critical wear threshold. On Iveco Daily 35S vehicles in intensive professional use — delivery, transport, construction — rear braking is subject to frequent and heavy demands. A functioning wear indicator is the only early warning system that prevents metal-to-metal braking, which is destructive to brake discs and dangerous for vehicle and cargo safety.
💡 Supplied as a pair — a complete rear axle set (left + right), ready to install when replacing brake pads.
🔧 Reference and compatibility
KPX Parts reference: KPX7355. Compatible with:
- ✅ Iveco Daily 35S – single rear wheels only
- ✅ MY2009 (2006-2011)
- ✅ MY2012 (2011-2014)
- ✅ MY2016 (2014-2019)
- ✅ MY2019 (2019-2022)
- ✅ MY2022 (2022-2024)
- ✅ MY2024 (from 2024)
- ✅ 2.3L HPI and 3.0L HPI engines
⚠️ These indicators are specific to 35S versions with single rear wheels. They are not compatible with 35C, 50C, 65C or 70C versions with dual rear wheels, which have a different rear braking system. If in doubt, contact our technical support team with your vehicle's chassis number.
⚙️ Technical specifications
✅ Reference: KPX7355
✅ Quantity supplied: 2 indicators (complete rear axle set)
✅ Position: Rear axle – left and right side
✅ Application: Iveco Daily 35S – single wheels – MY2009 to MY2024
✅ Function: Triggers brake pad wear warning light on dashboard
✅ Installation: Direct integration into rear brake pads
✅ Condition: New
⚠️ Signs of a faulty or replacement-due wear indicator
The wear indicator is a consumable part to be replaced systematically every time you change rear brake pads.
- ❌ Brake wear warning light constantly on on the dashboard even though brake pads appear correct — sign of a severed or oxidized indicator wire
- ❌ Warning light flashing on and off intermittently — poor contact or wire exposed by friction
- ❌ Warning light never illuminates despite worn pads — defective indicator, major risk of metal-to-metal braking with no warning
- ❌ Visibly corroded indicator or damaged wire during underbody inspection
- ❌ Metallic grinding noise at the rear during braking — sign that the indicator or pads have reached their limit
🚨 Never reuse a wear indicator after changing brake pads: the metal tab is deformed or cut after contact with the disc and can no longer provide its warning function. Systematic replacement of the indicator with the pads is an absolute safety requirement.
🔩 Installation tips
🔹 Always replace wear indicators at the same time as brake pads — a worn indicator that is reused will provide no warning during the next wear cycle.
🔹 Check the wire and electrical connector condition during installation: a damaged wire or corroded connector can cause false alerts or no alert.
🔹 Ensure the indicator is correctly positioned in the pad slot before reassembling the caliper: an incorrectly positioned indicator may rub on the disc prematurely.
🔹 After reassembly, perform a few gentle brake applications to verify the warning light turns off on the dashboard.
🔹 Take the opportunity to check the thickness of rear brake discs: a disc outside specifications must be replaced at the same time as the pads to ensure braking efficiency.
💡 On Iveco Daily 35S vehicles in intensive use, it is recommended to inspect the condition of rear pads and indicators every 30,000 to 40,000 km or at each annual service.
🛒 Complementary parts to replace simultaneously
For a complete rear braking system overhaul of your Iveco Daily 35S, find on RAXOR Parts:
- ✅ Complete Iveco Daily braking range – pads, discs, calipers, indicators
- ✅ Rear brake pads Iveco Daily 35S – to be replaced systematically with indicators
- ✅ Rear brake discs Iveco Daily 35S – check thickness every time pads are changed
- ✅ Front brake wear indicators Iveco Daily 35S – check during same service
- ✅ Left rear brake caliper Iveco Daily 35S – check for leaks or seizing
- ✅ Right rear brake caliper Iveco Daily 35S – opposite side
- ✅ Rear brake hose Iveco Daily 35S – inspect during any braking system work
