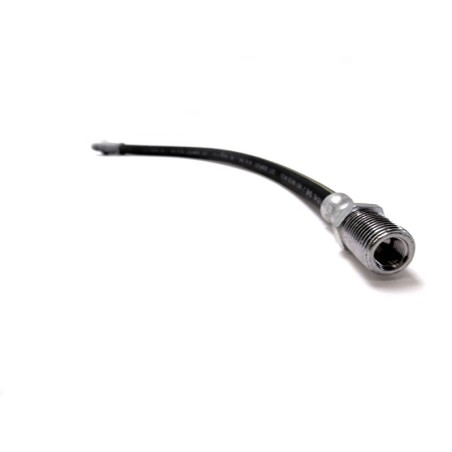

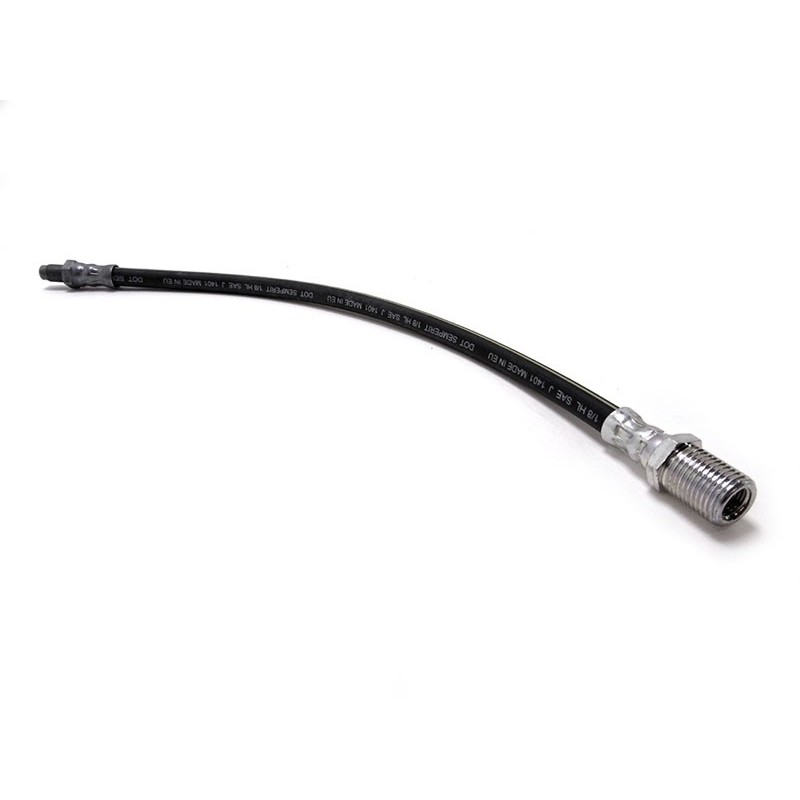

⚙️ Front brake hose Iveco Daily 35C – Braking pressure transmitted without loss to the caliper
🔧 What is this part for?
The front brake hose conveys brake fluid under high pressure from rigid pipes fixed to the chassis to the wheel caliper. Unlike metal tubes, it must constantly follow the suspension travel and wheel steering, hence its construction in rubber reinforced by textile braid. With each brake pedal press, it transmits the master cylinder pressure to the caliper piston without expanding. A worn hose swells under pressure or leaks, and the braking efficiency of the front axle is immediately reduced.
This new hose is compatible with the Iveco reference 504229365. It fits on the front axle of Iveco Daily 35C with torsion bar front suspension, on the left as well as the right side, replacing the original part. Its threaded M10x1 fittings screw onto the rigid pipe and caliper without modification.
✅ Technical specifications
Compatibility: Iveco Daily 35C, Daily IV, V and VI (from 2006 onwards), 2.3 and 3.0 engines
Type: Hydraulic brake hose, textile-reinforced rubber, steel ends
Position: Front axle, left or right
Threading: M10x1
Function: Connection between rigid chassis pipe and front brake caliper
Condition: New
Reference: compatible with Iveco reference 504229365
✅ Why replace this part?
✅ A hose that deforms under pressure absorbs part of the braking effort: the pedal becomes spongy and stopping distances increase, especially when loaded.
✅ A leak at a fitting or a cracked sheath causes fluid level to drop and can result in brake loss on the affected circuit.
✅ A cracked, swollen or weeping hose is a reason for MOT failure.
✅ Wear / failure / replacement symptoms
The most common signs are a soft brake pedal or one that sinks more than usual, a vehicle pulling to one side when braking, or fluid level dropping without visible leaks elsewhere. On inspection, look for cracks in the sheath, deformation or bulging, moisture traces around fittings, and areas rubbed against the chassis or wheel. A hose whose internal wall deteriorates can also act as a check valve and maintain pressure in the caliper, causing a wheel to overheat and abnormal pad wear on one side only.
✅ Installation tips
Temporarily cap the rigid pipe when removing it to limit fluid loss and air entry. Install the hose without twisting it: it must remain free over the full suspension travel and full steering lock, without touching the wheel or chassis. Use a pipe wrench on the fittings to avoid damaging the nuts, replace the copper seals at the caliper if necessary, then bleed the circuit with fluid complying with Iveco specifications. Since braking is a safety system, installation by a professional is recommended.
✅ Technical advice from RAXOR Parts
Left and right front hoses age in the same way: if one shows cracks, the other usually follows closely, and it is preferable to replace them as a pair. You will find the other brake hoses and pipes for Iveco Daily as well as all brake hydraulic system parts at RAXOR Parts. Take the opportunity to bleed and check the brake pads for Iveco Daily and proper sliding of the brake calipers for Iveco Daily, especially if the vehicle was pulling to one side. Everything else in the system can be found in our braking section for Iveco Daily.
✅ Why choose RAXOR Parts?
✅ New hose compatible with Iveco reference 504229365, for the front axle of Iveco Daily 35C, with direct installation on left or right side.
✅ Hoses, pads, calipers and additional braking parts available for a complete overhaul in a single order.
✅ Stock available and fast shipping to minimize downtime for your working vehicle.
